buildtoronto said:
SKULL_KRUSHER is right. Each post-tensioning bar is 3 inches in diameter. High strength grout will be pumped from the lower location until it starts weeping out through the top location several floors above. Then you know the bars are fully sealed with grout. The bumps that you see in the silver sheathing is where the coupler that joins two bars is located. Just a trivia: This is the 3rd high-rise structure (including CN Tower) in Canada to have post-tensioned walls.
Click to expand...
Interesting that this tower has the post-tensioning.
Vancouver House had it because it was a severely lopsided design.
I guess that it's just the extreme height and issues with sway?

officedweller said:
Interesting that this tower has the post-tensioning.
Vancouver House had it because it was a severely lopsided design.
I guess that it's just the extreme height and issues with sway?
Click to expand...
To my understanding that when this building is built to its proposed Chi Town height, it will be the 2nd tallest human made structure in this country next to the CN Tower. But one that will contain 105 floors of residents and their furniture. And since they're not using any hybrid steel and concrete method as done with The One at its base, they're going to have find extra strength needed from somewhere to sustain this all. And yes, they will likely be swaying.

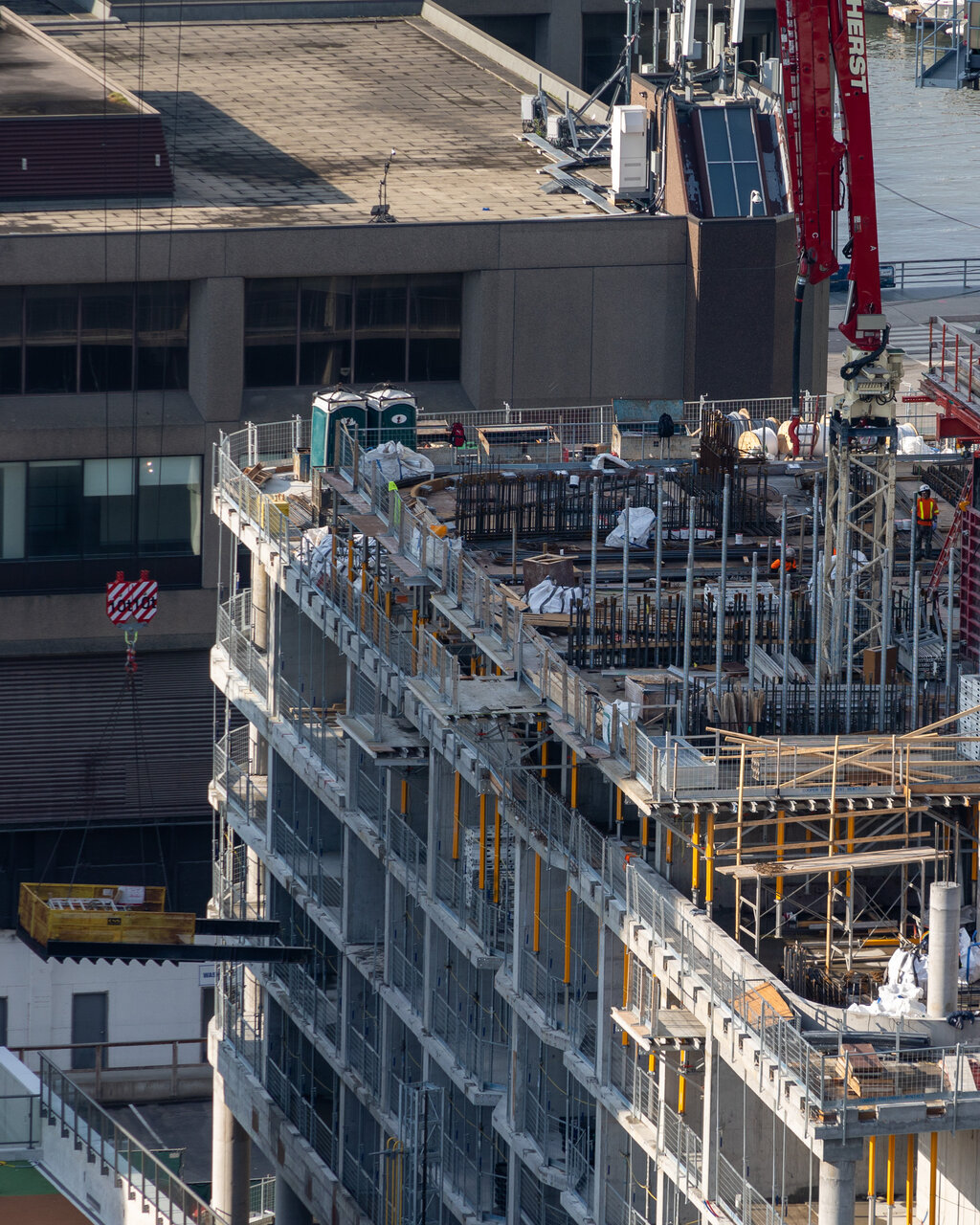

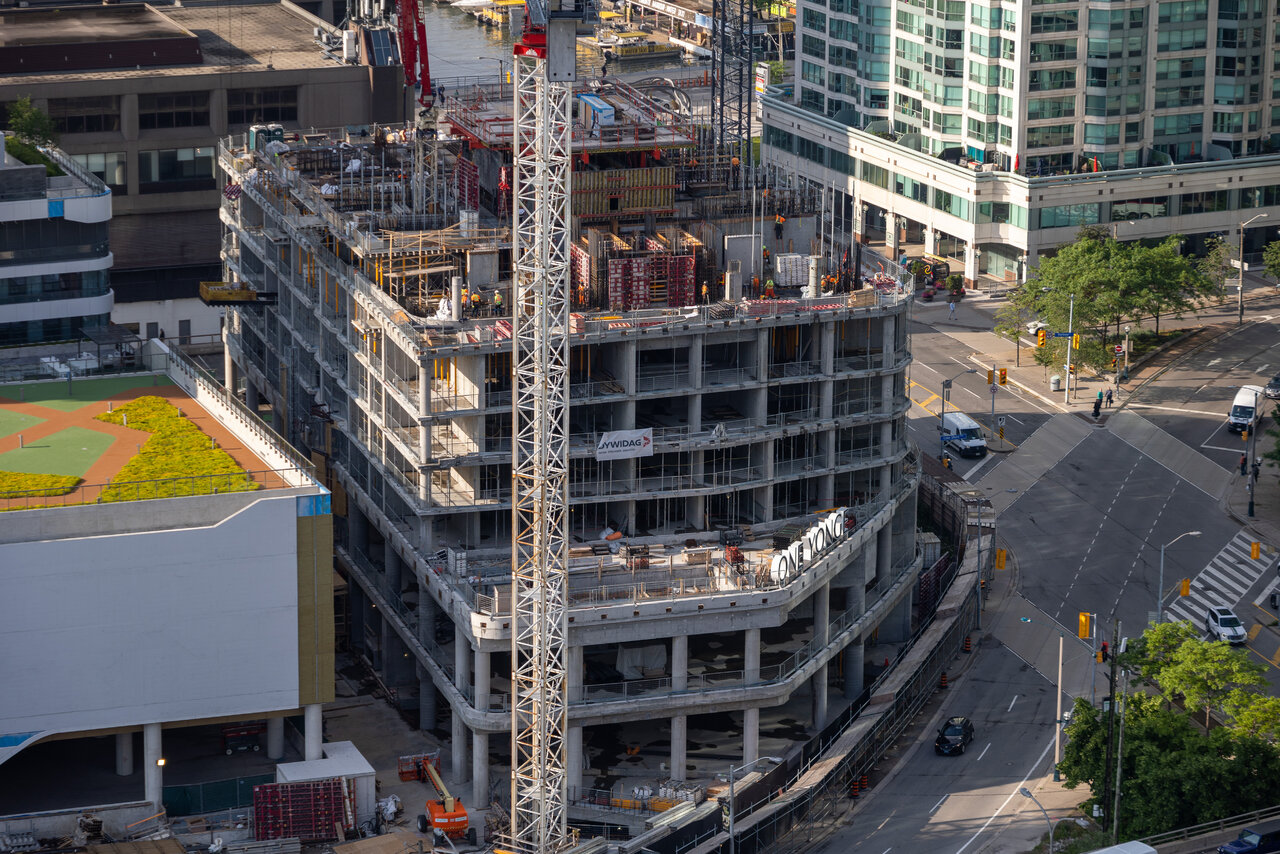

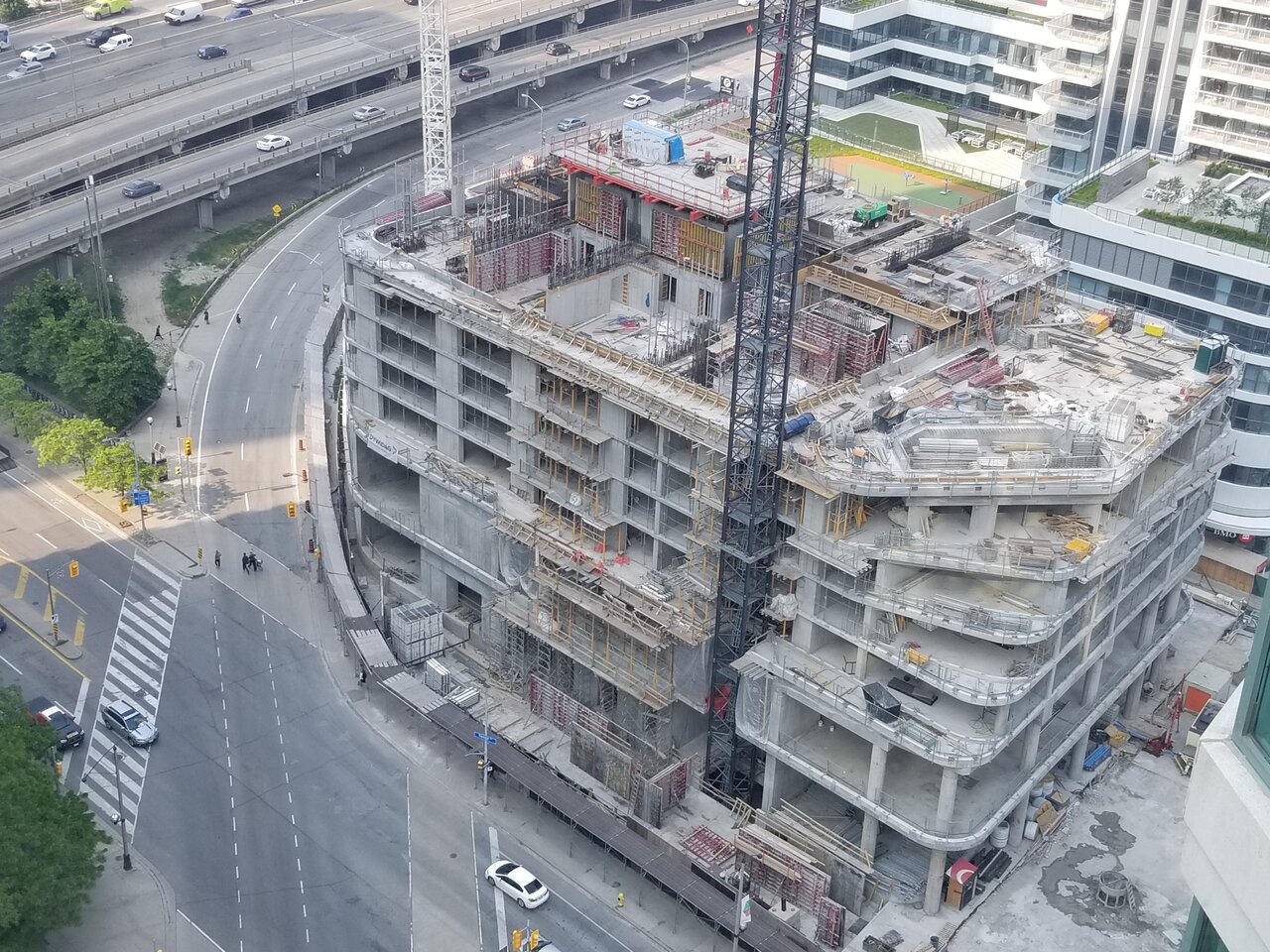

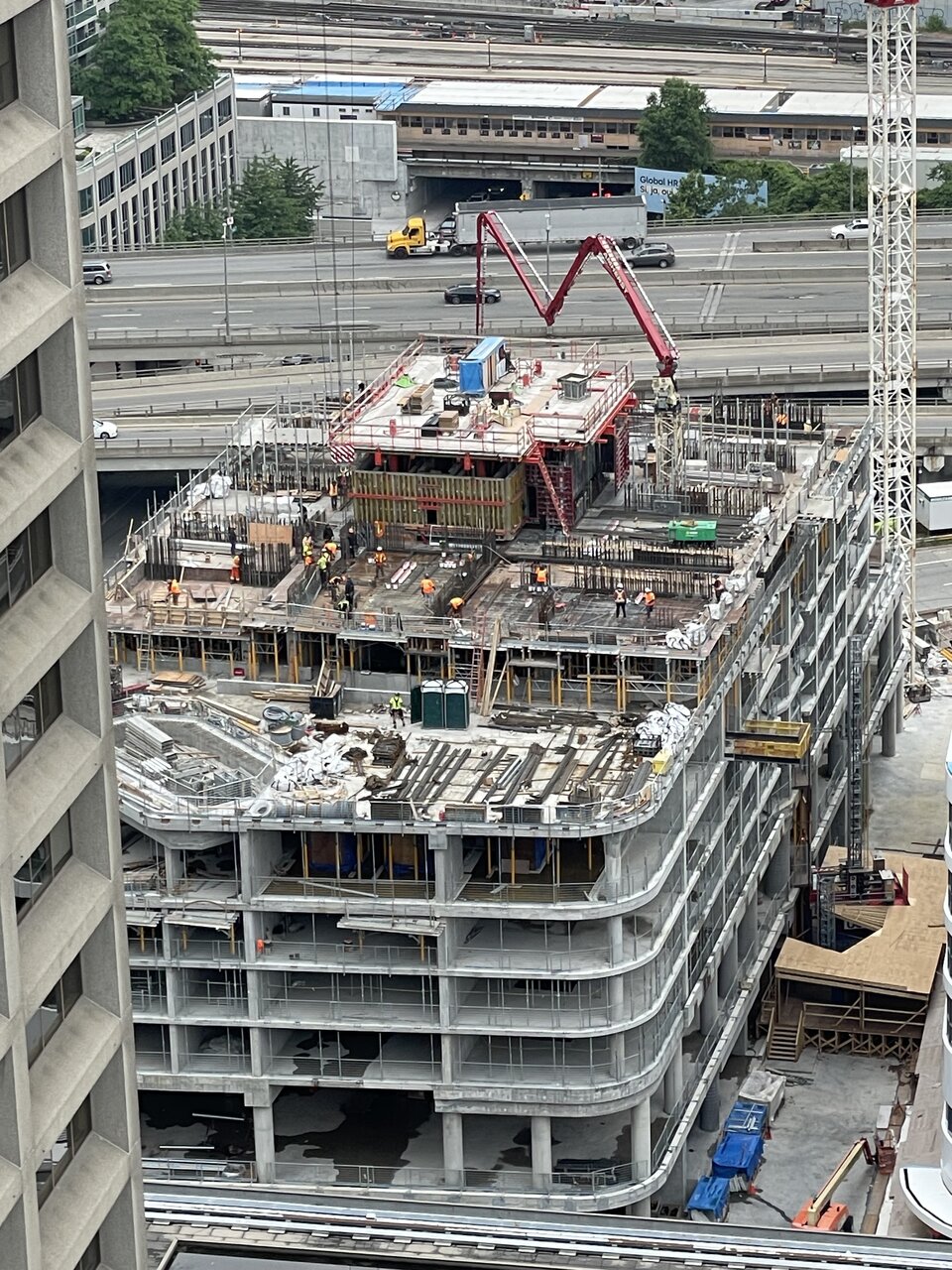

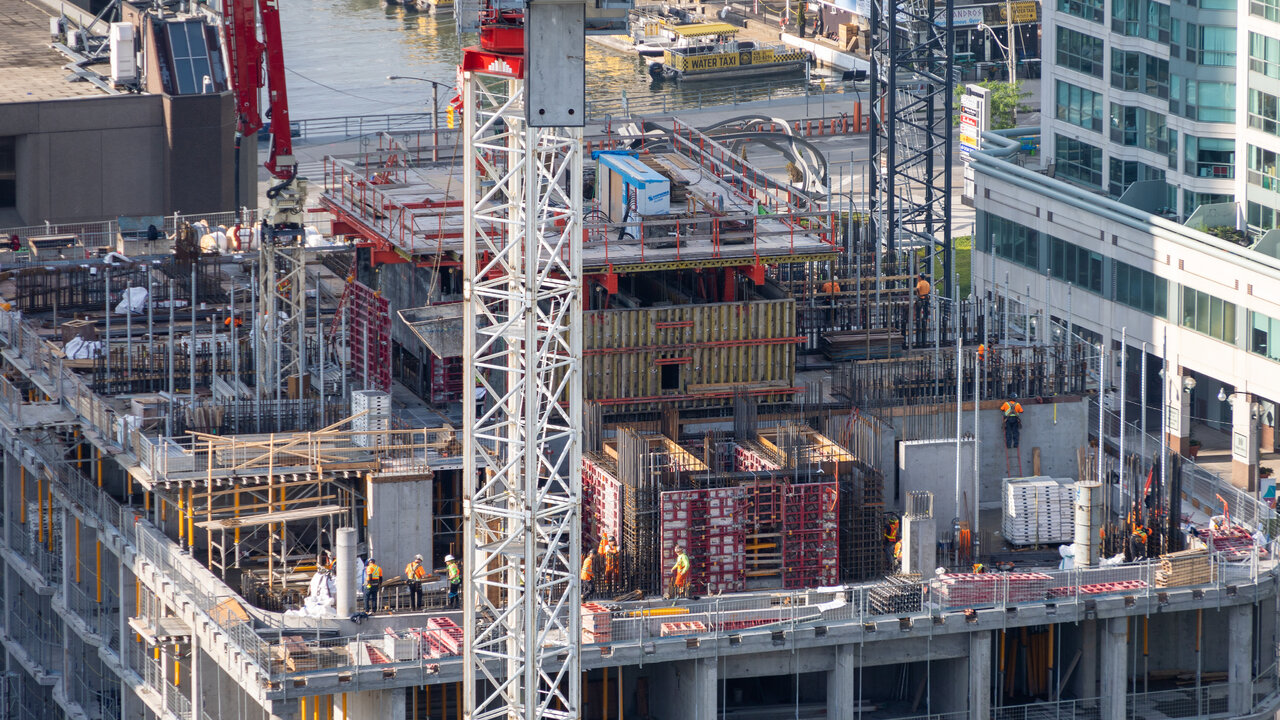

Just now. Things to note: Core jump, more post-tensioning bars, and stacks of some kind of cladding/material on the ground on the west side (hard to tell what it is).

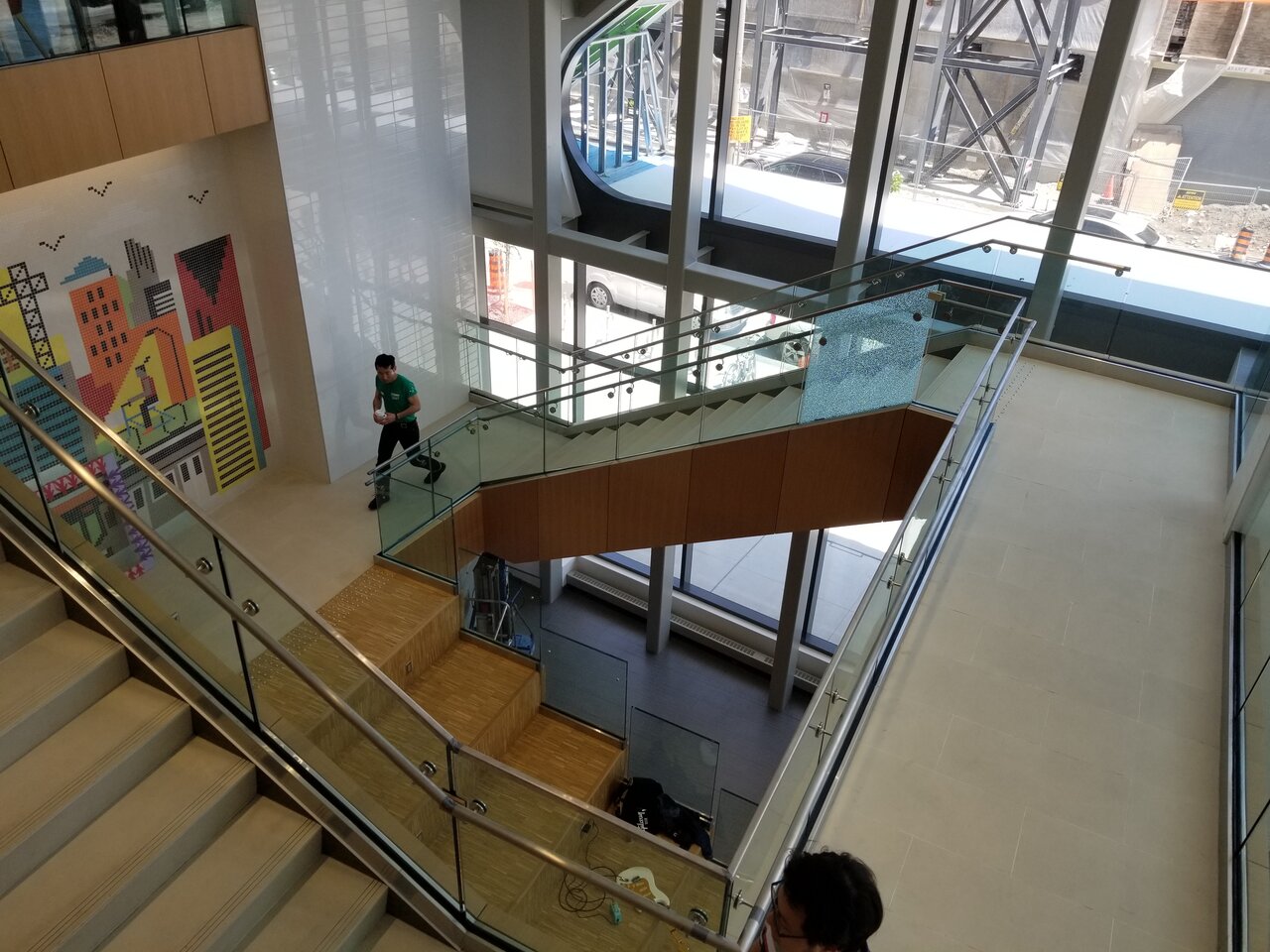

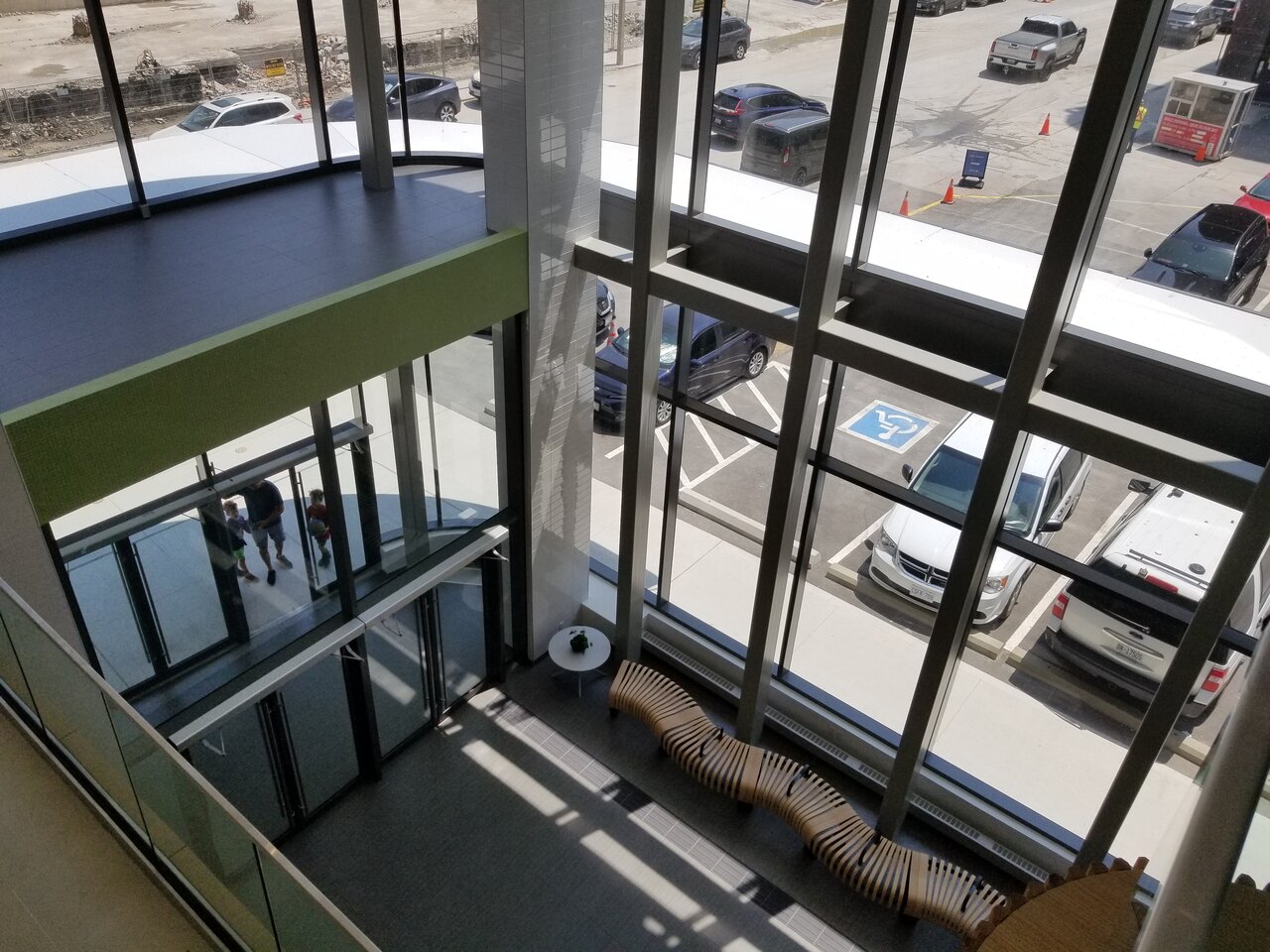

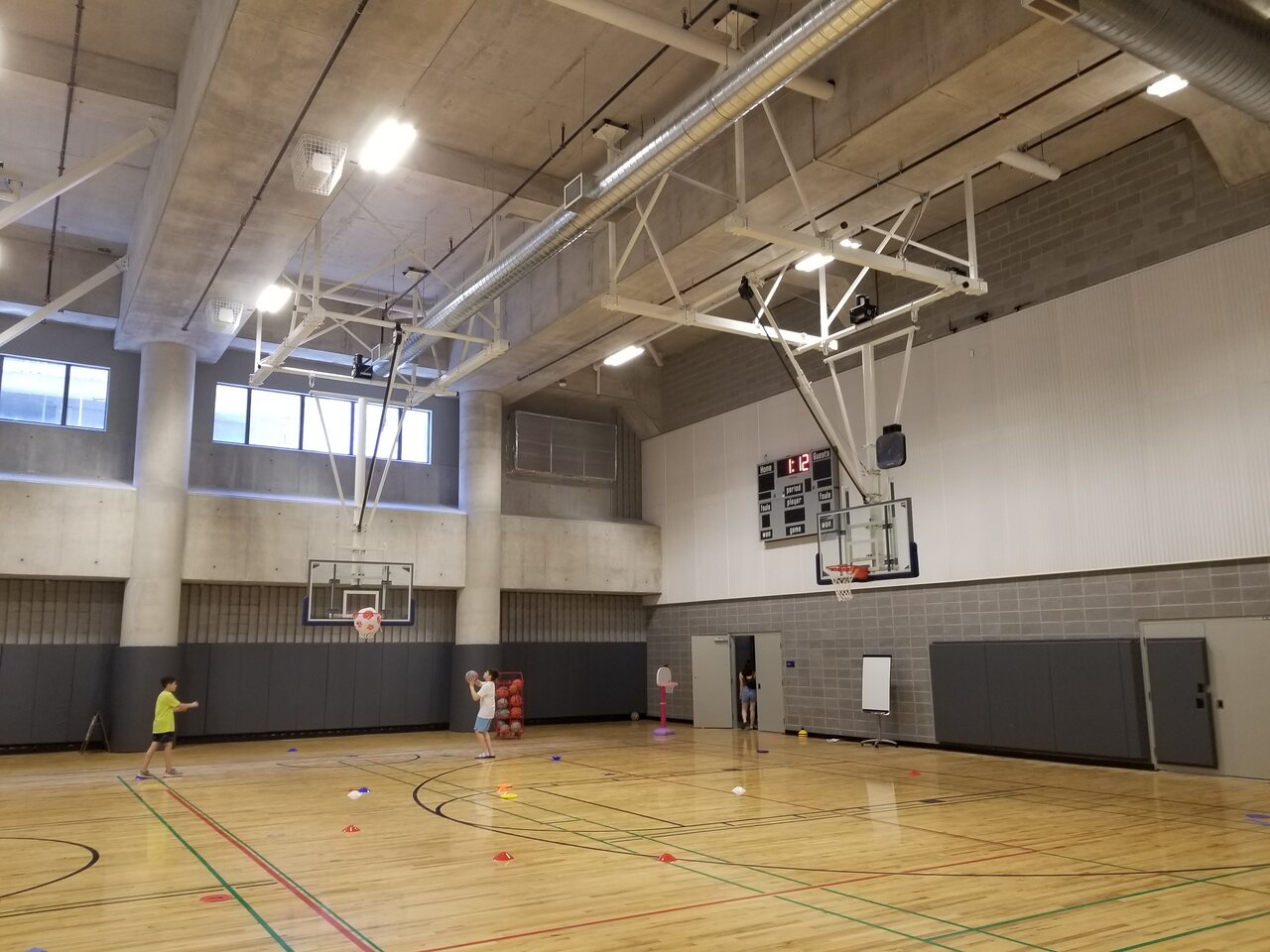

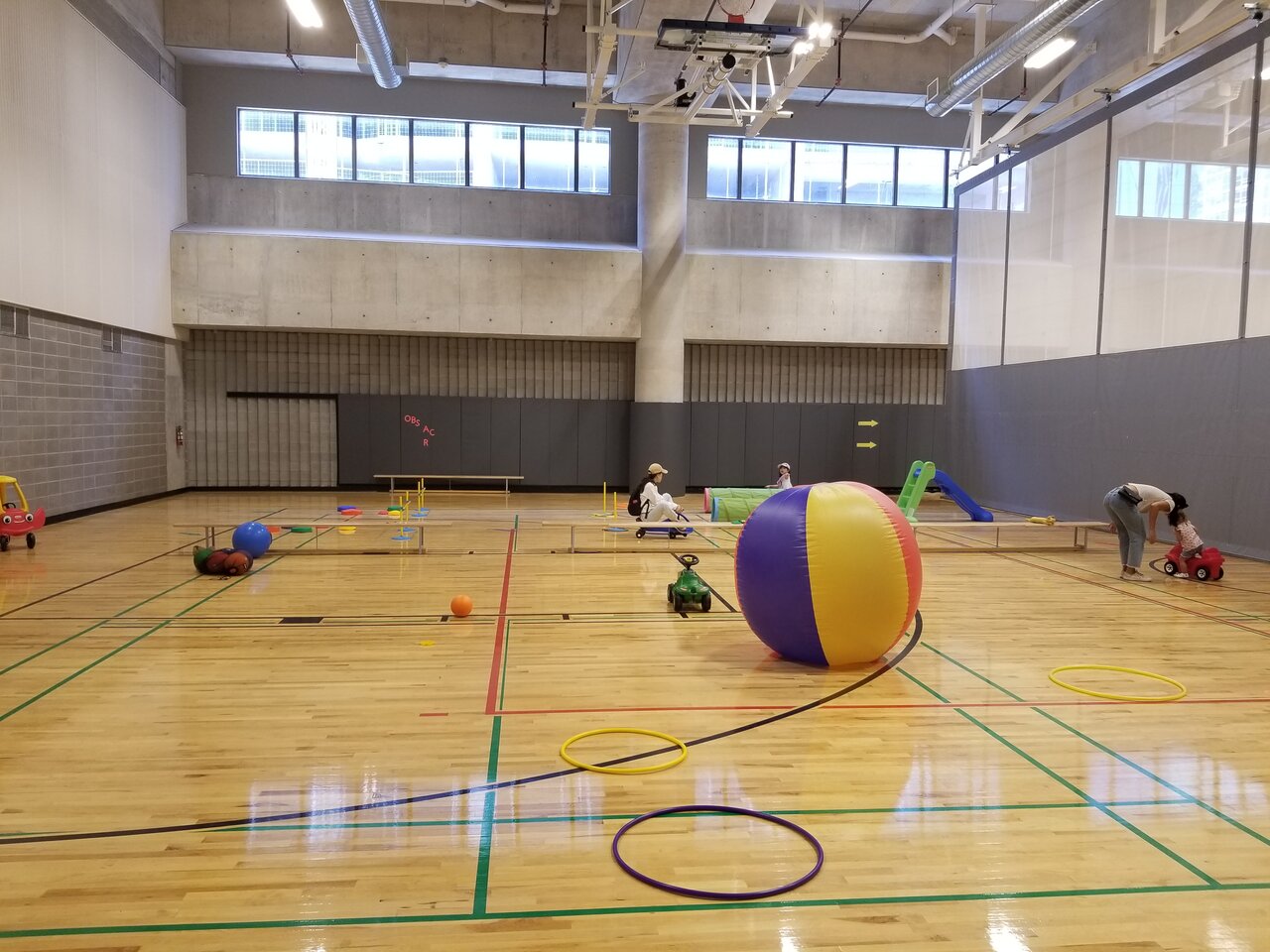

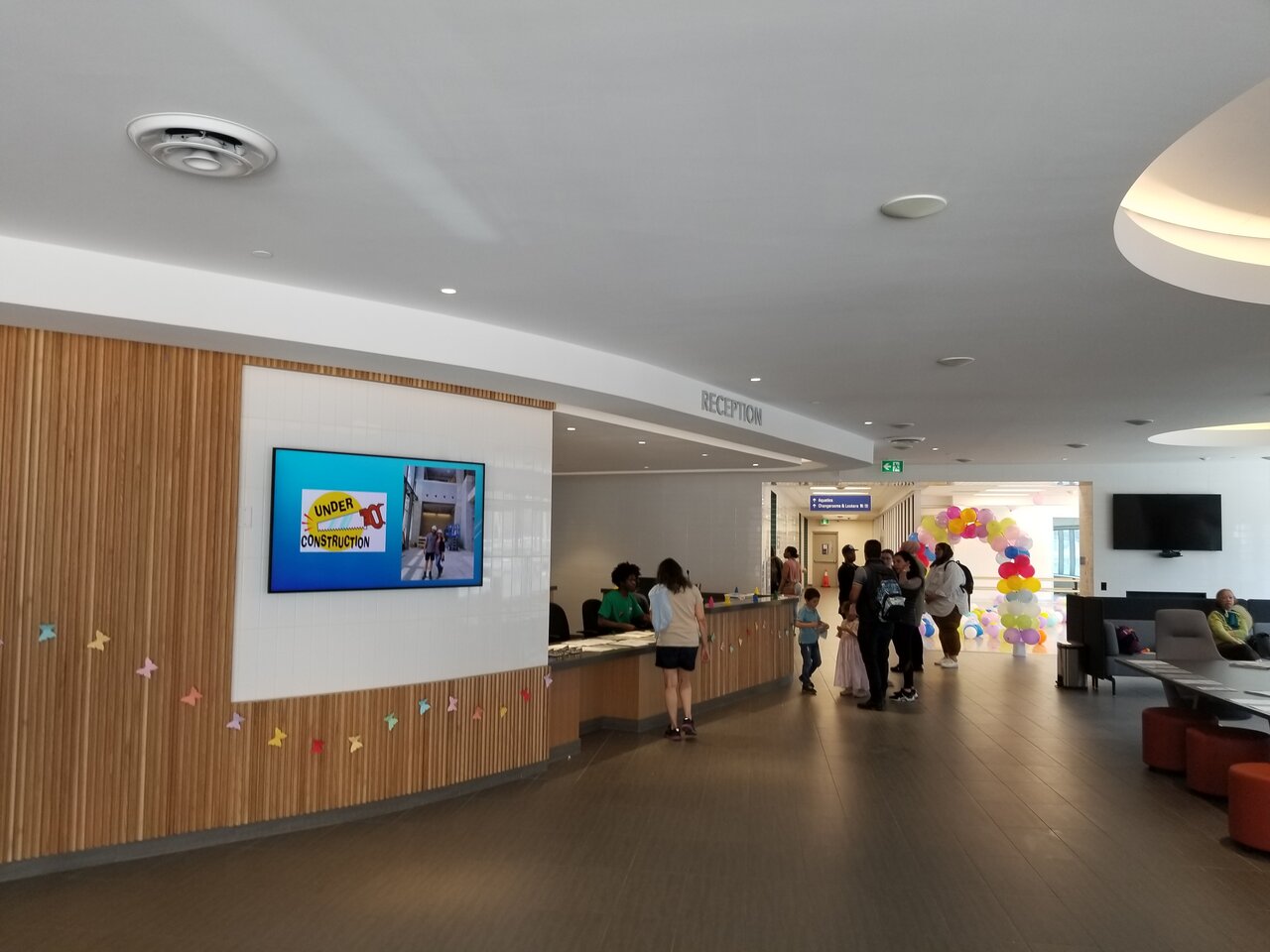

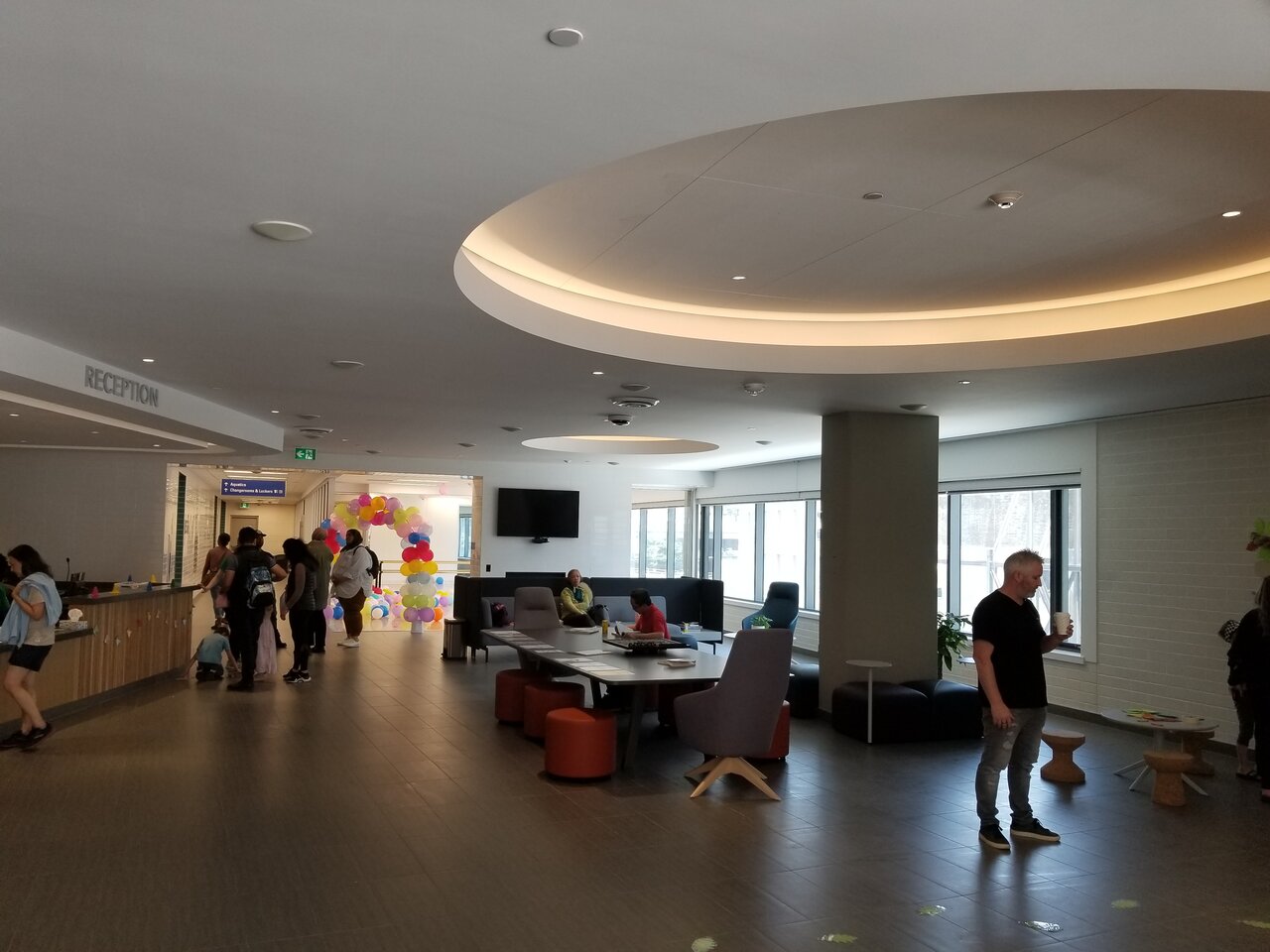

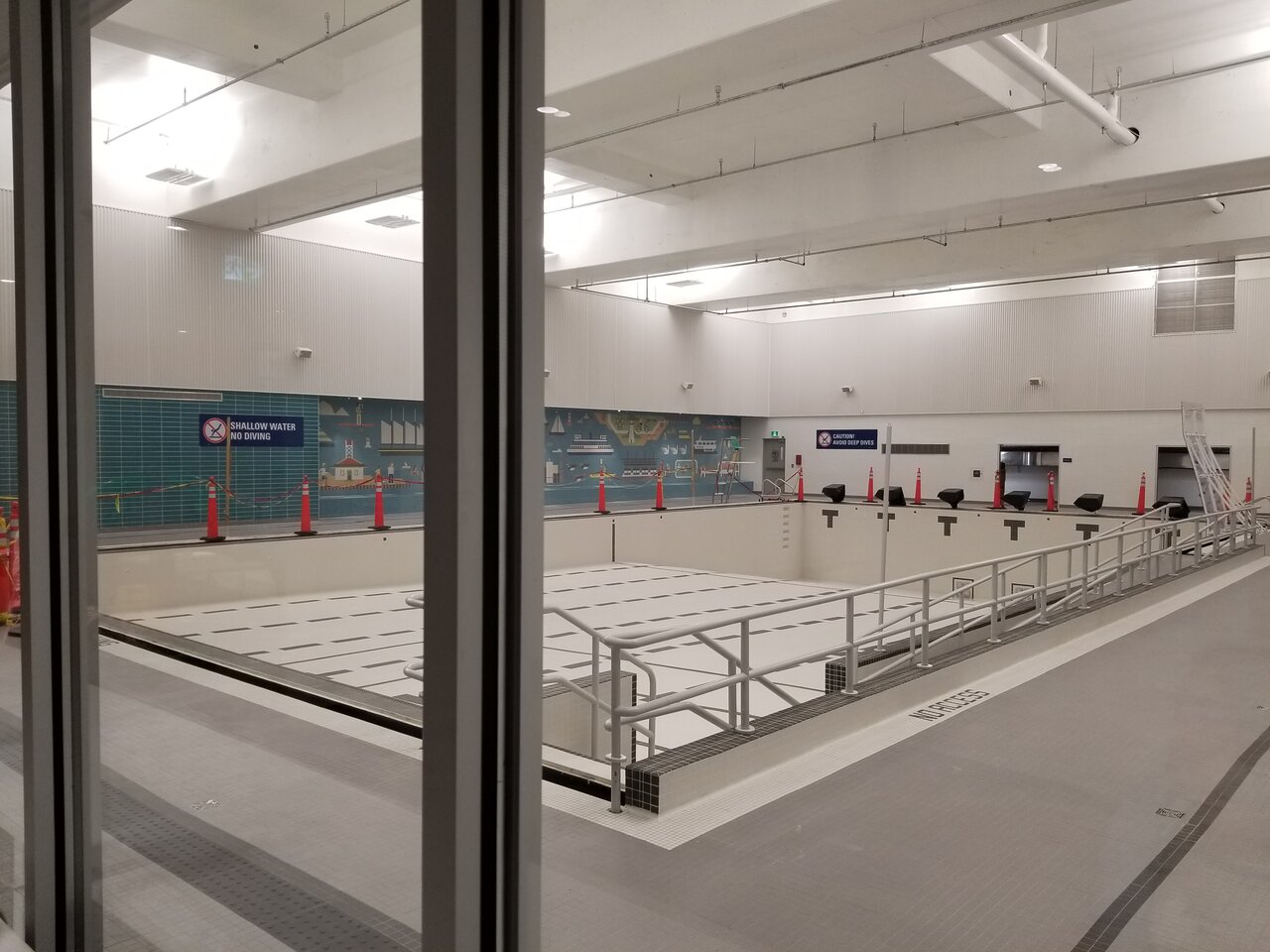

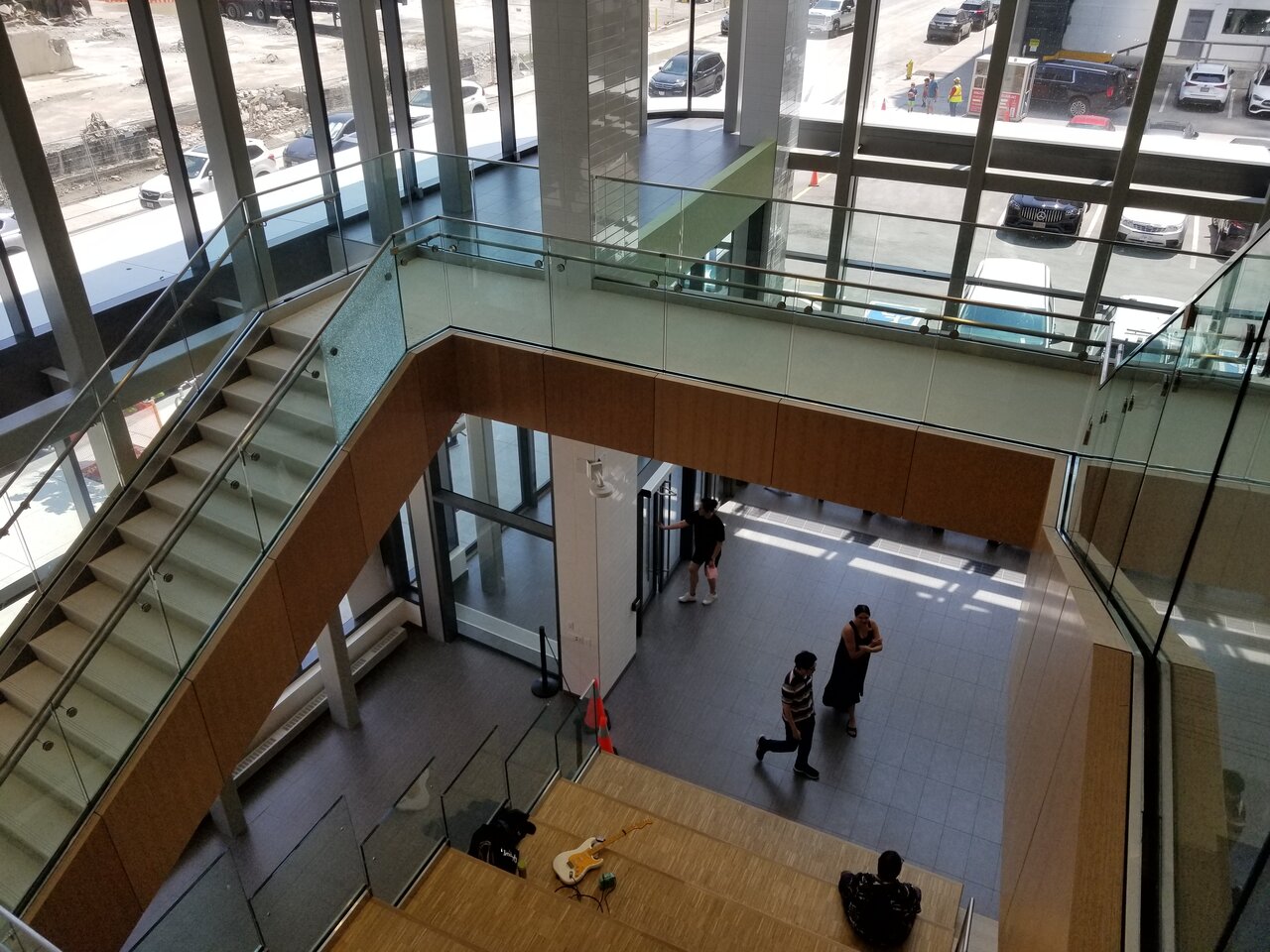

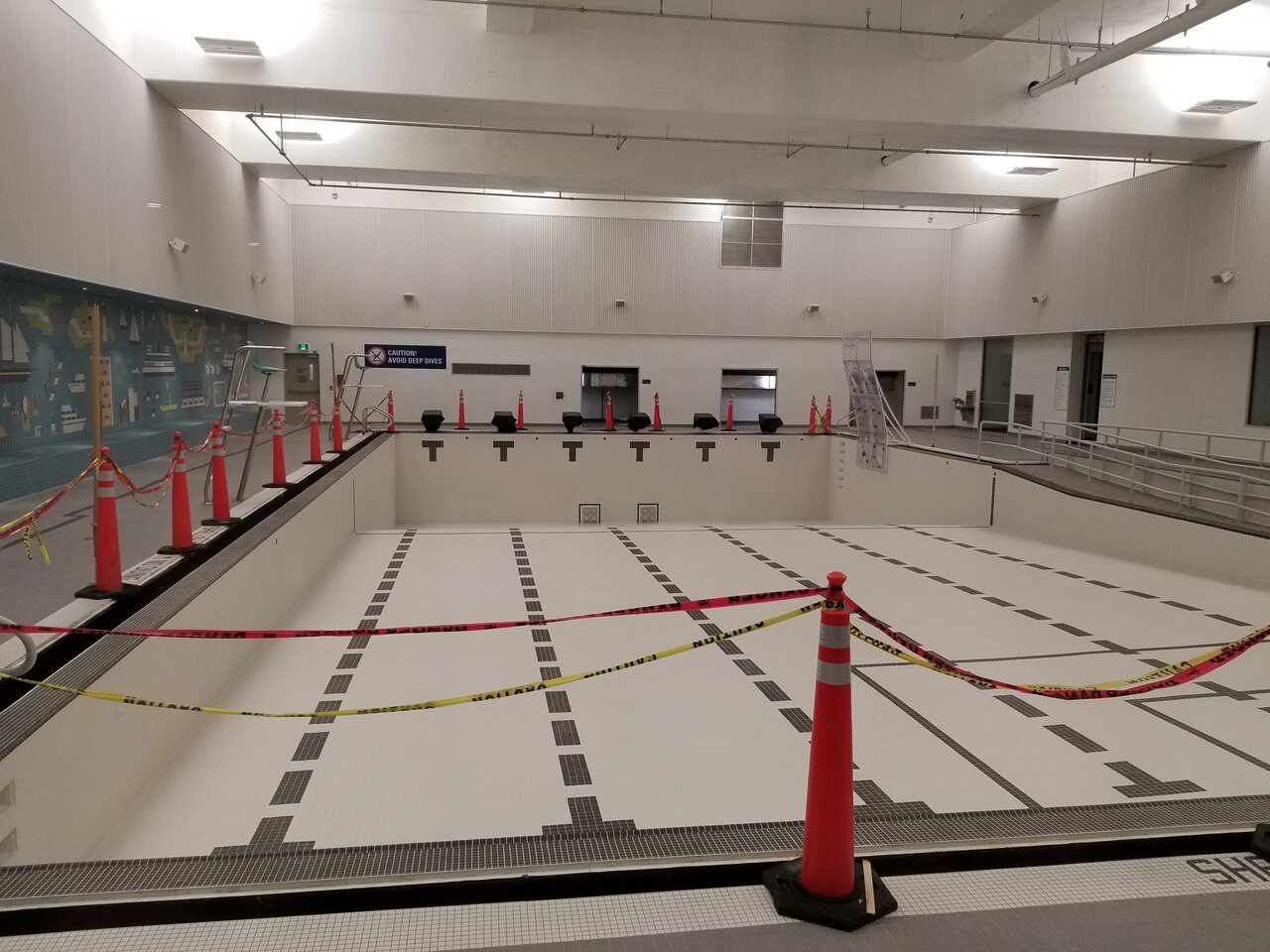

The rec centre has a soft opening June 17 and 18.



www.toronto.ca

One Yonge Community Recreation Centre

Homepage for One Yonge Community Recreation Centre
www.toronto.ca www.toronto.ca

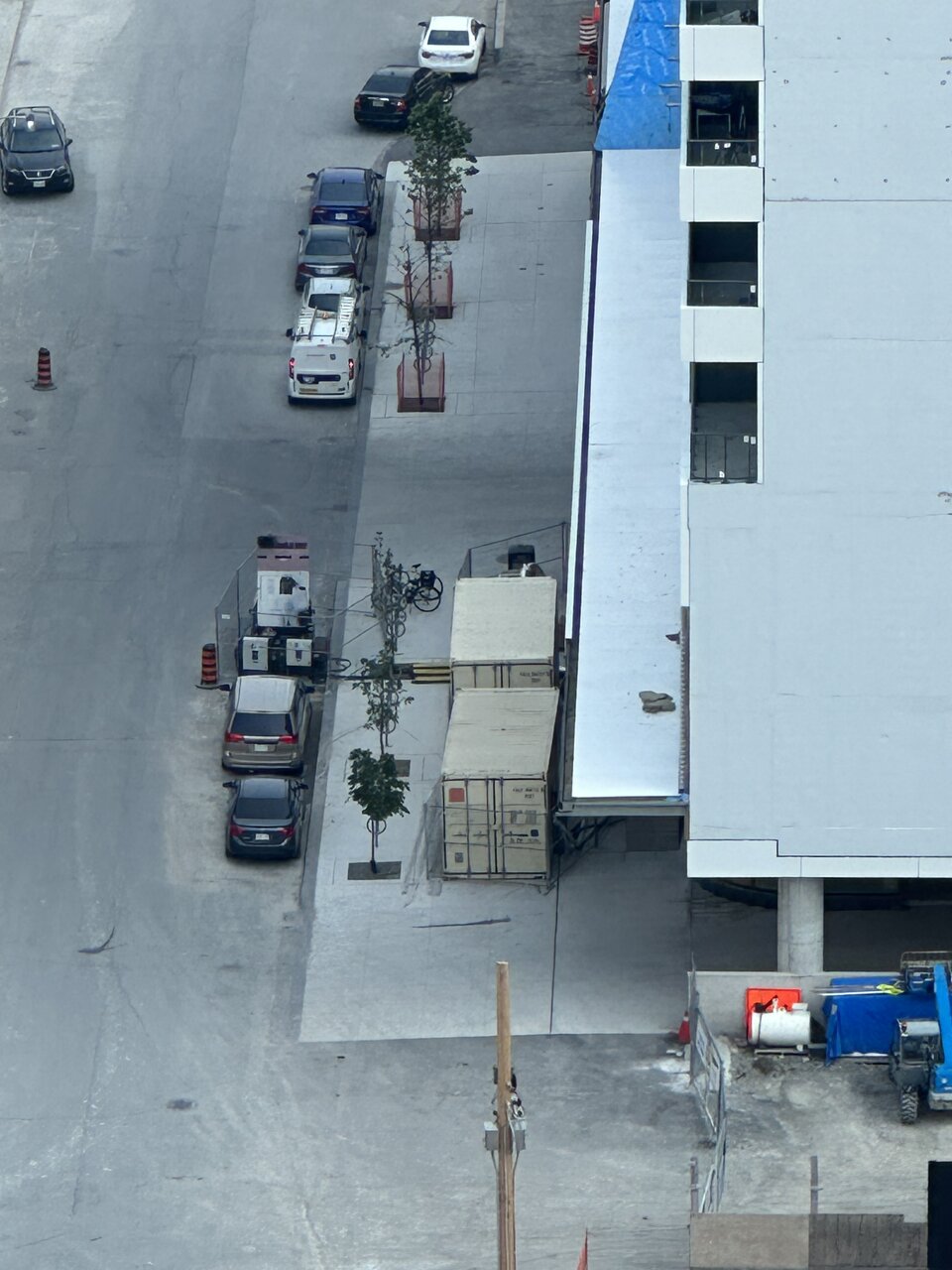

Half of the temporary Enwave equipment was taken away today.

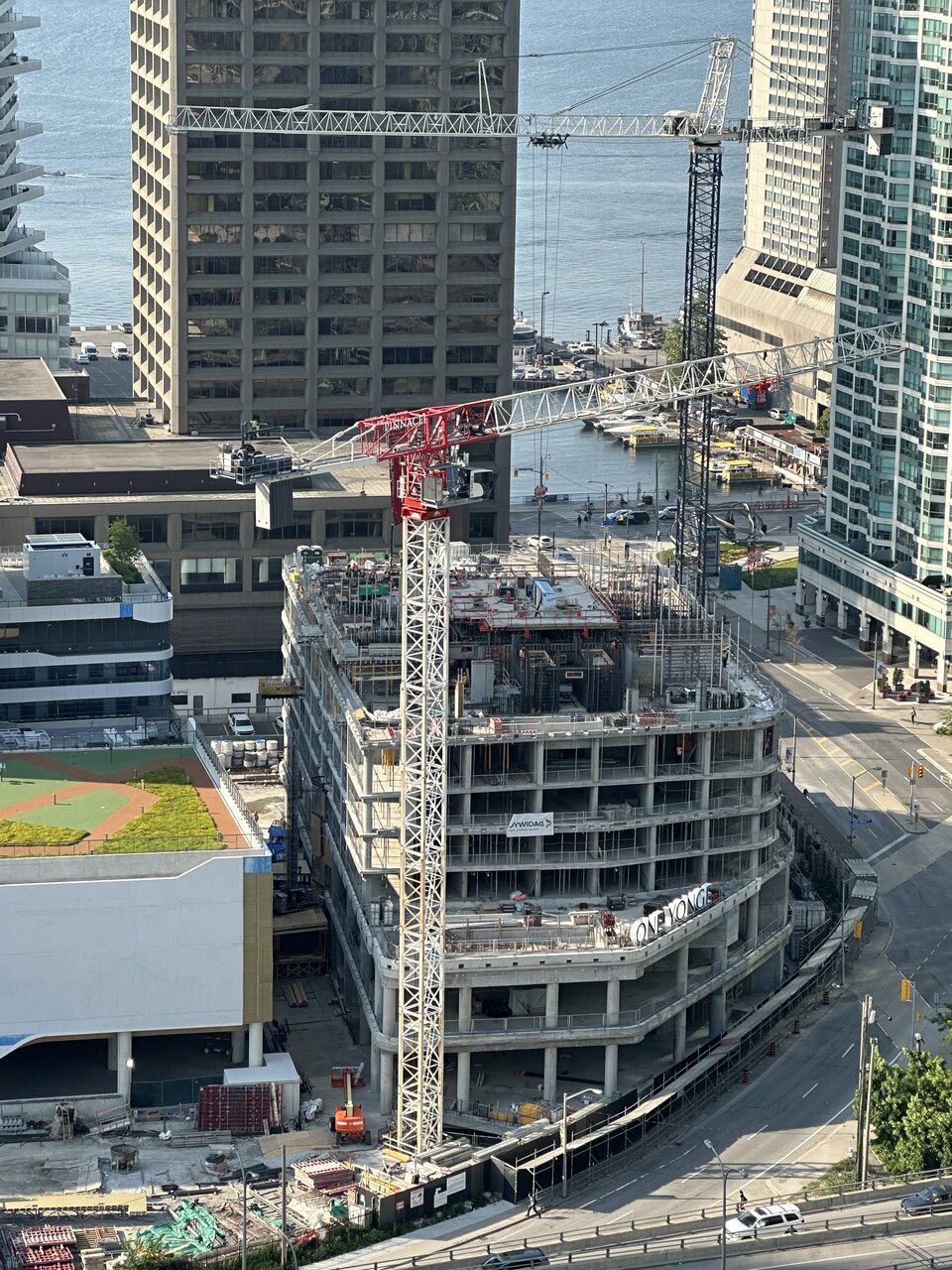

earlier this morning before @wmedia ’s update above

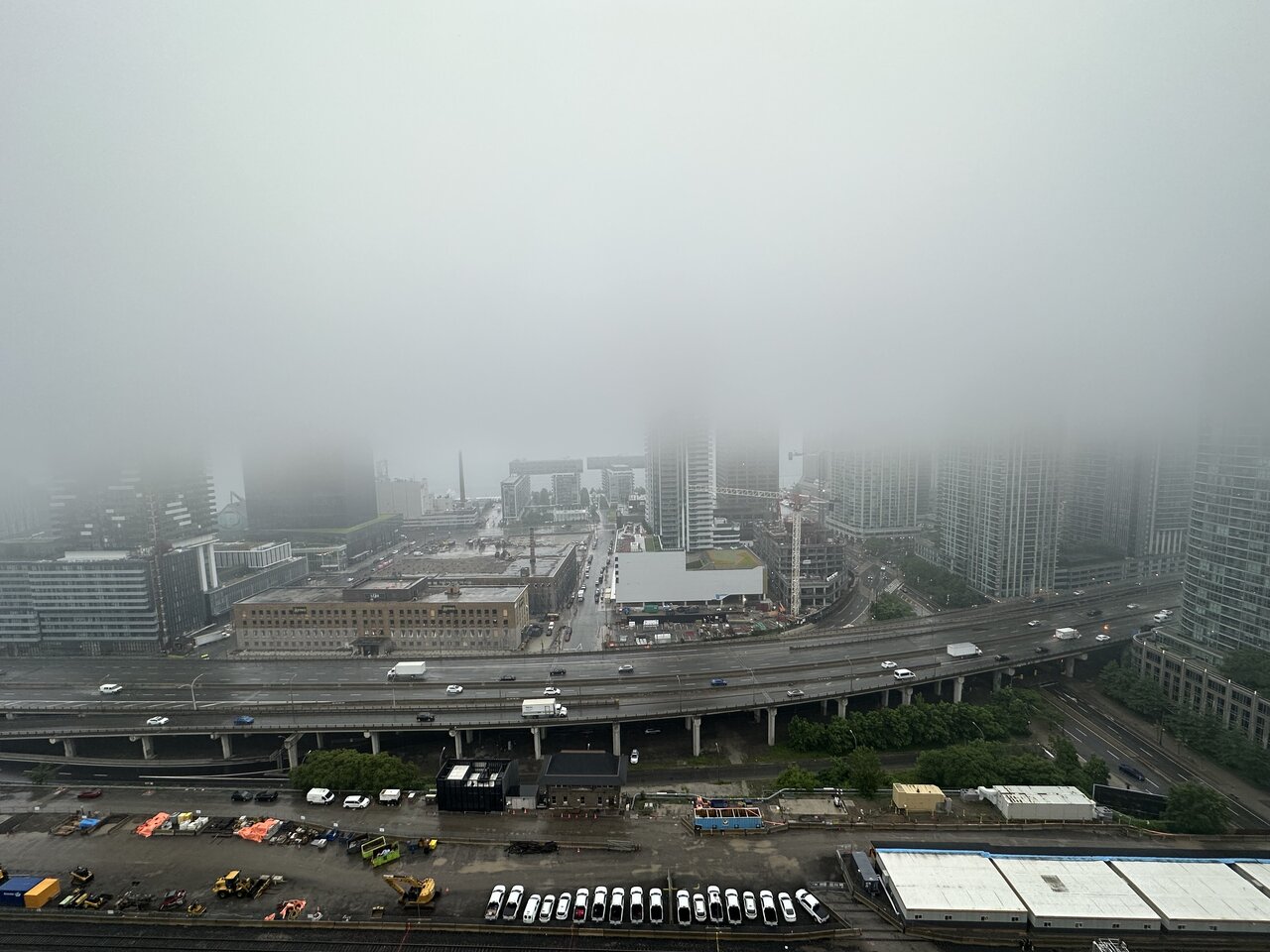

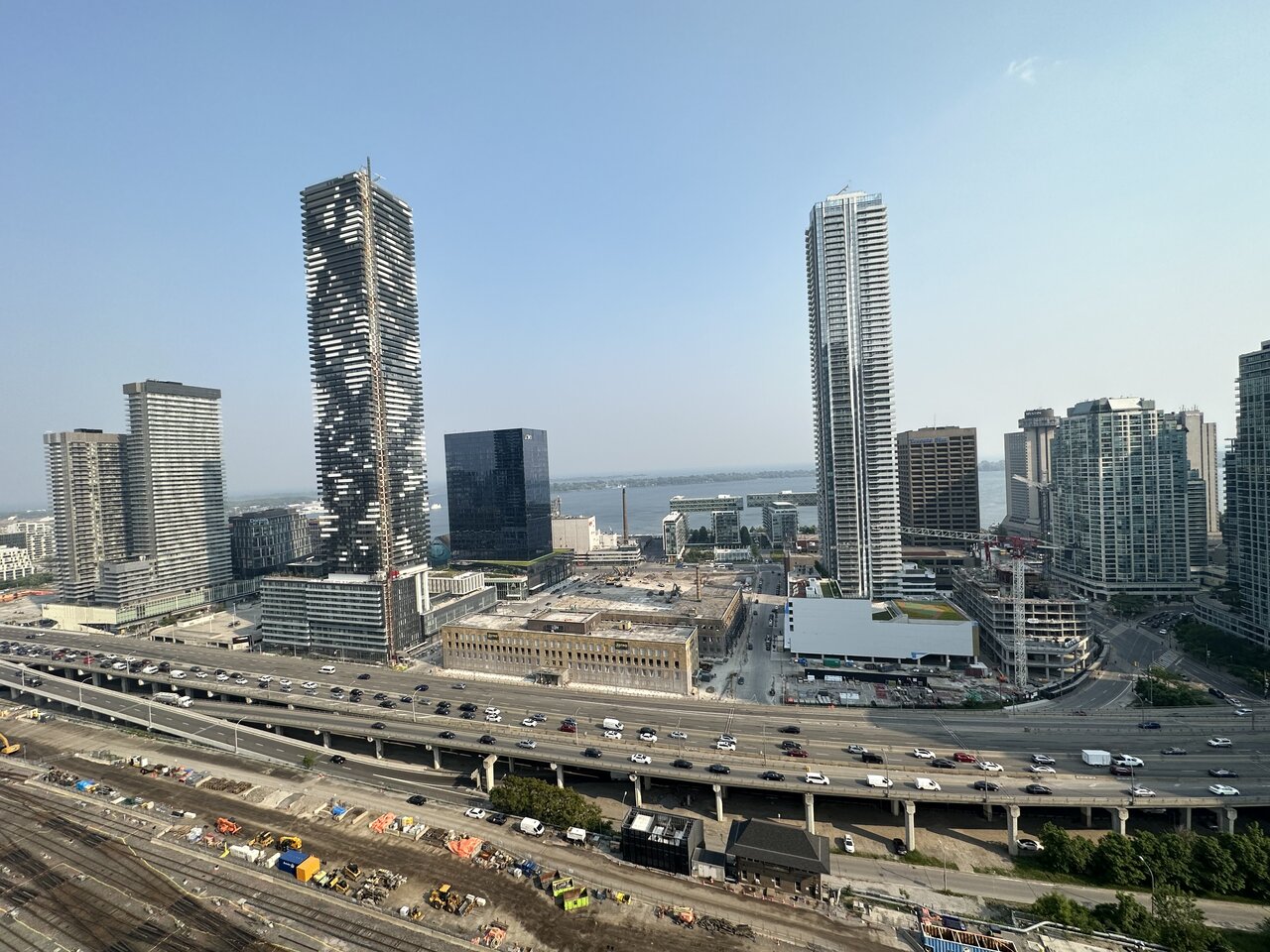

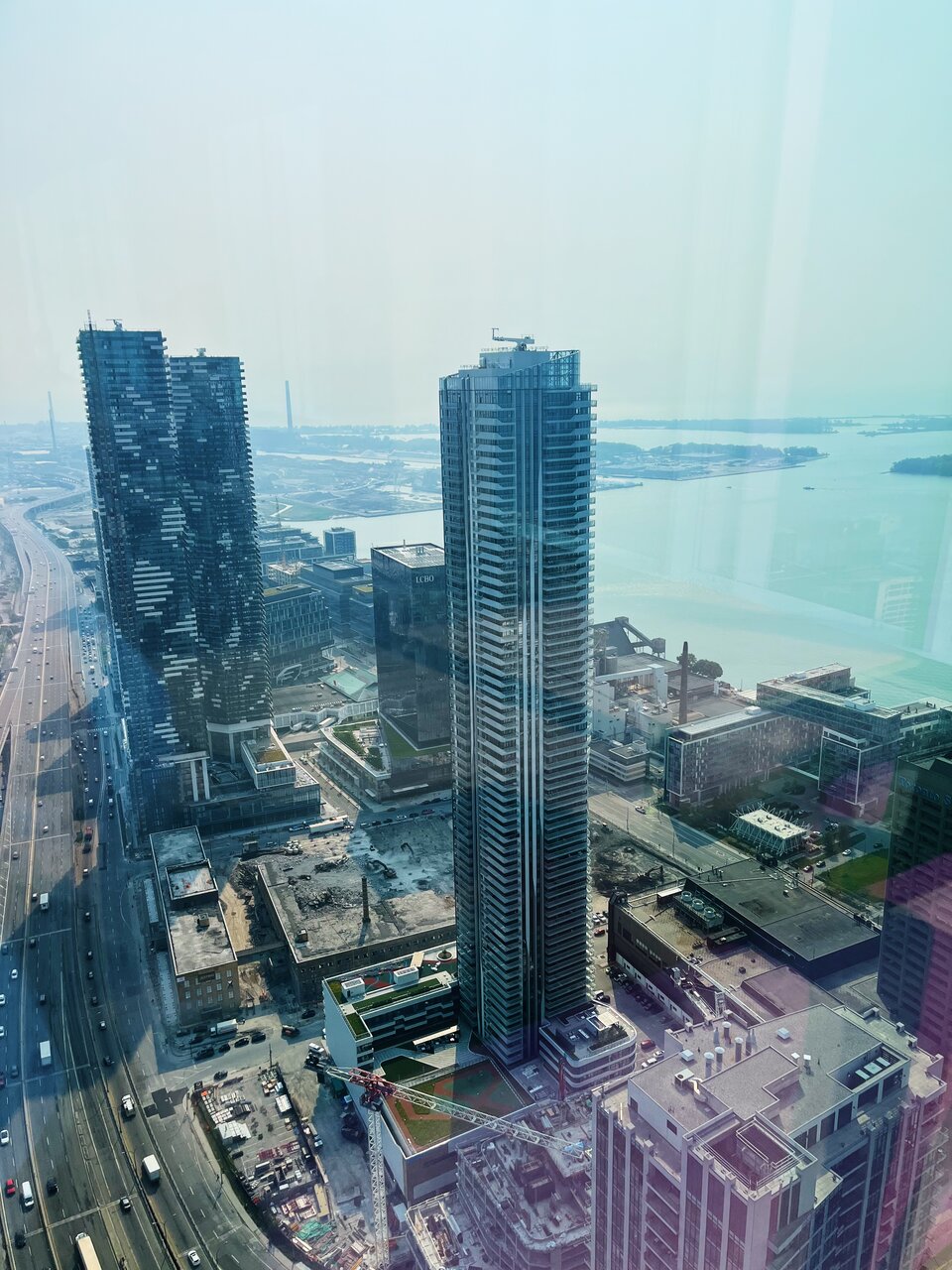

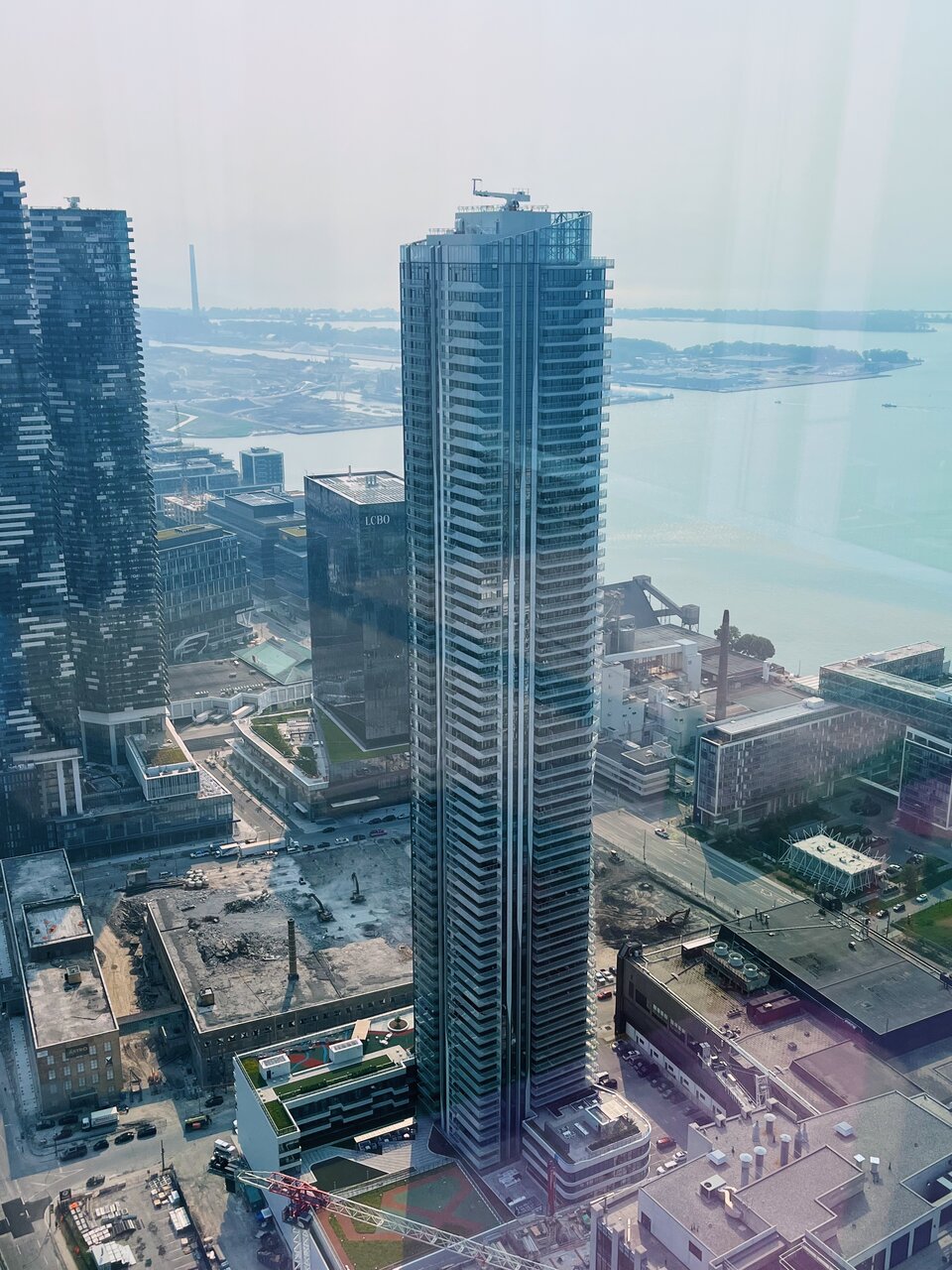

Tonight. The smoke and haze is worse than the iPhone captured


From May 30

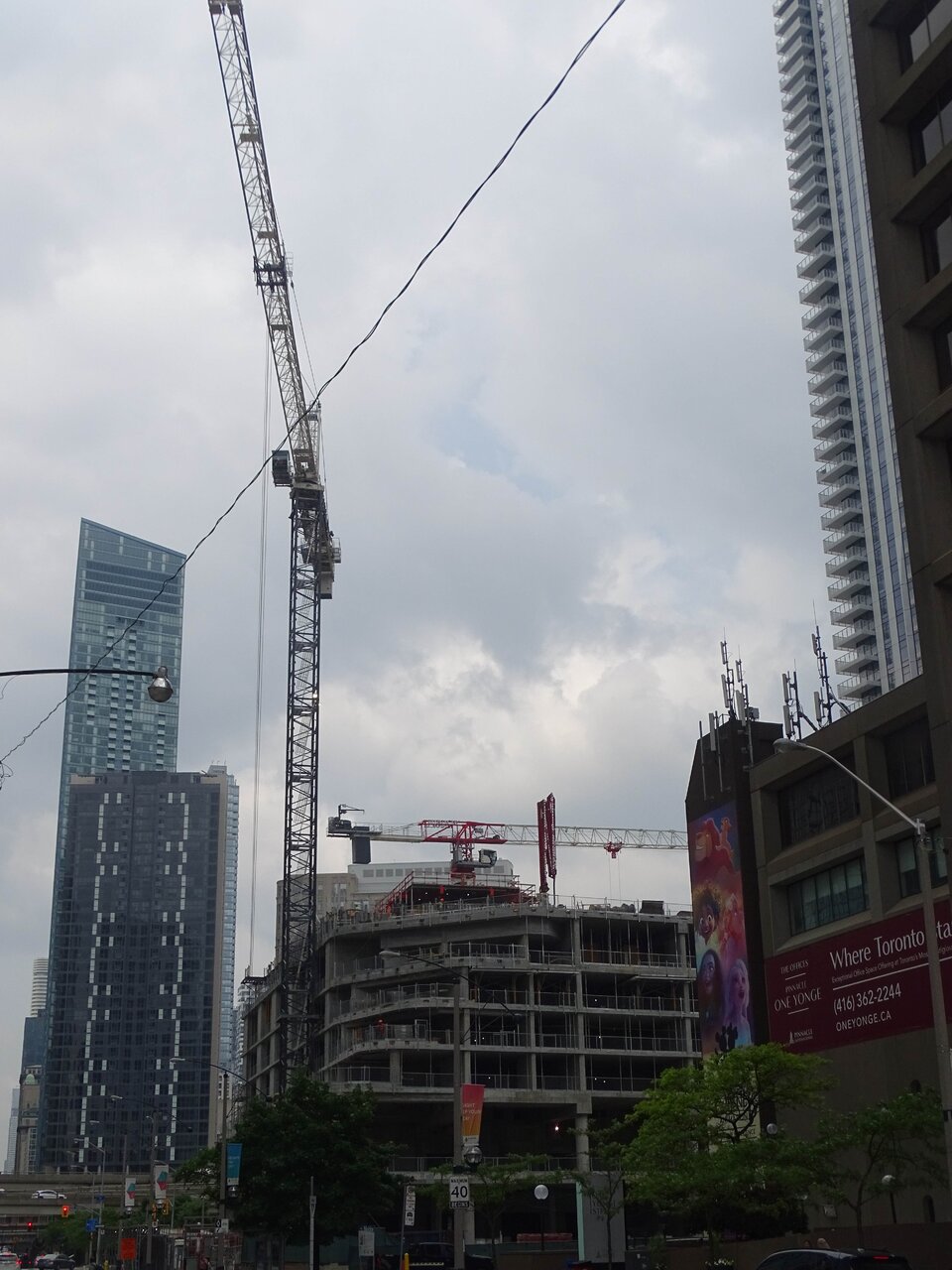

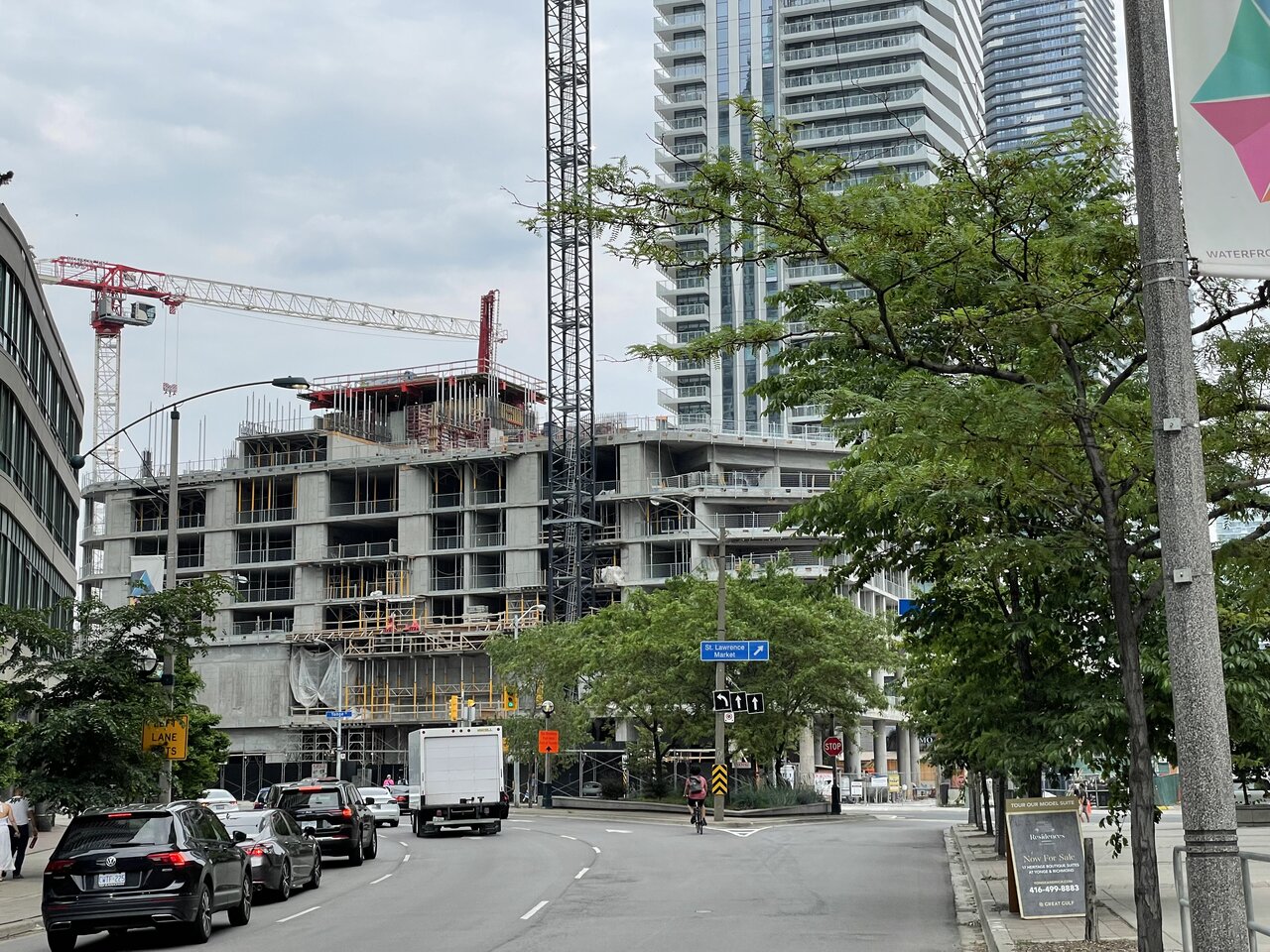

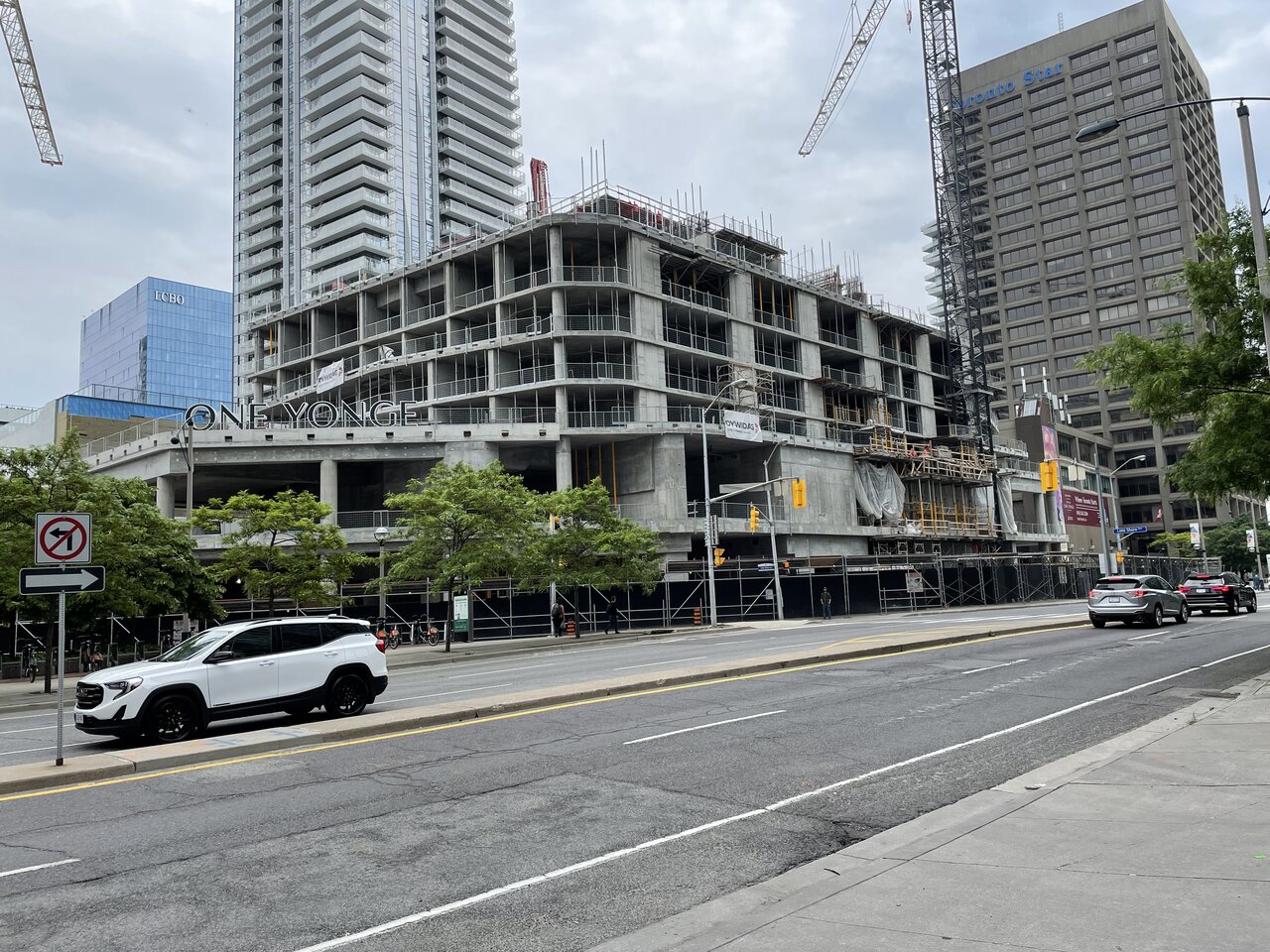

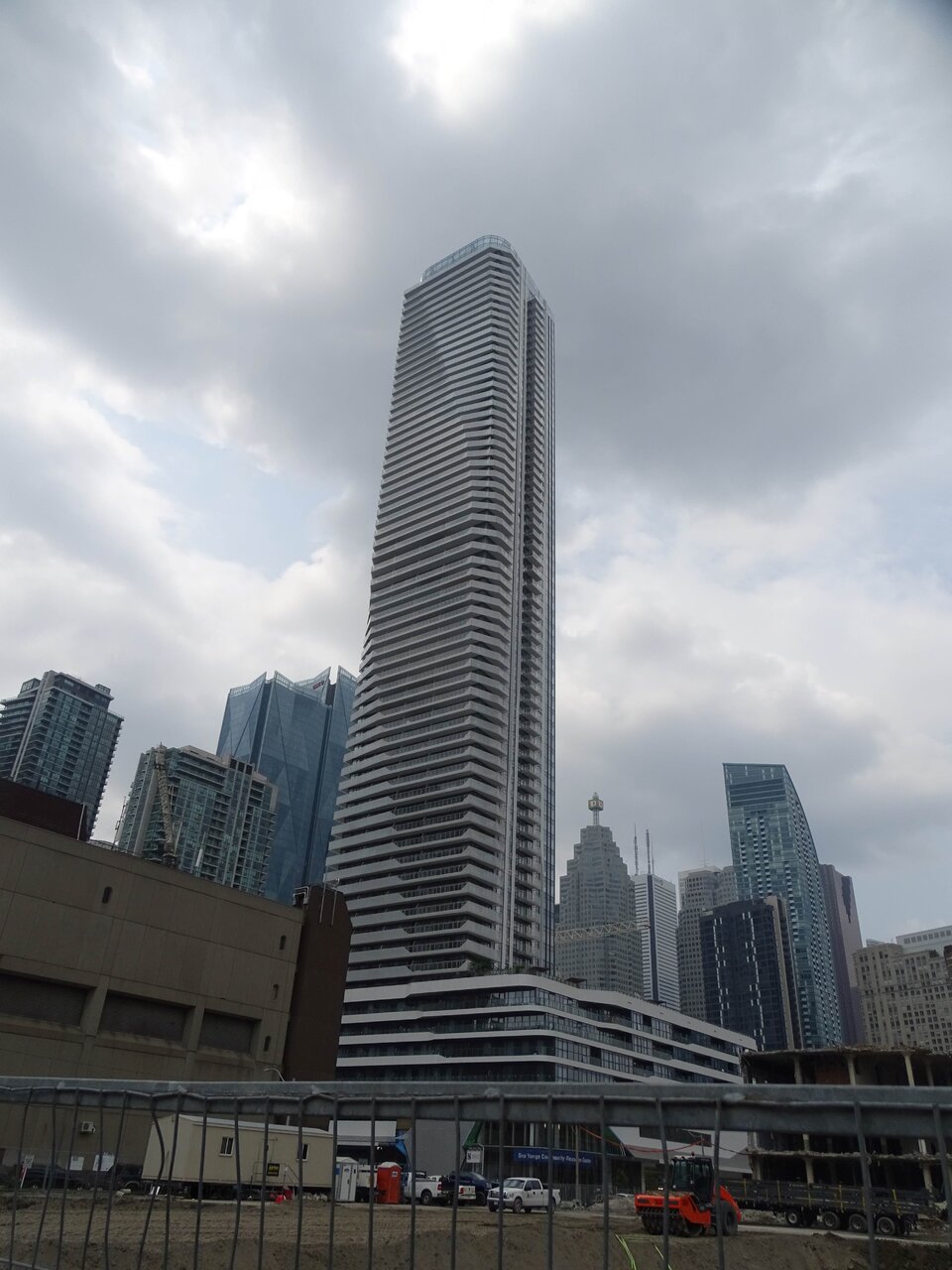

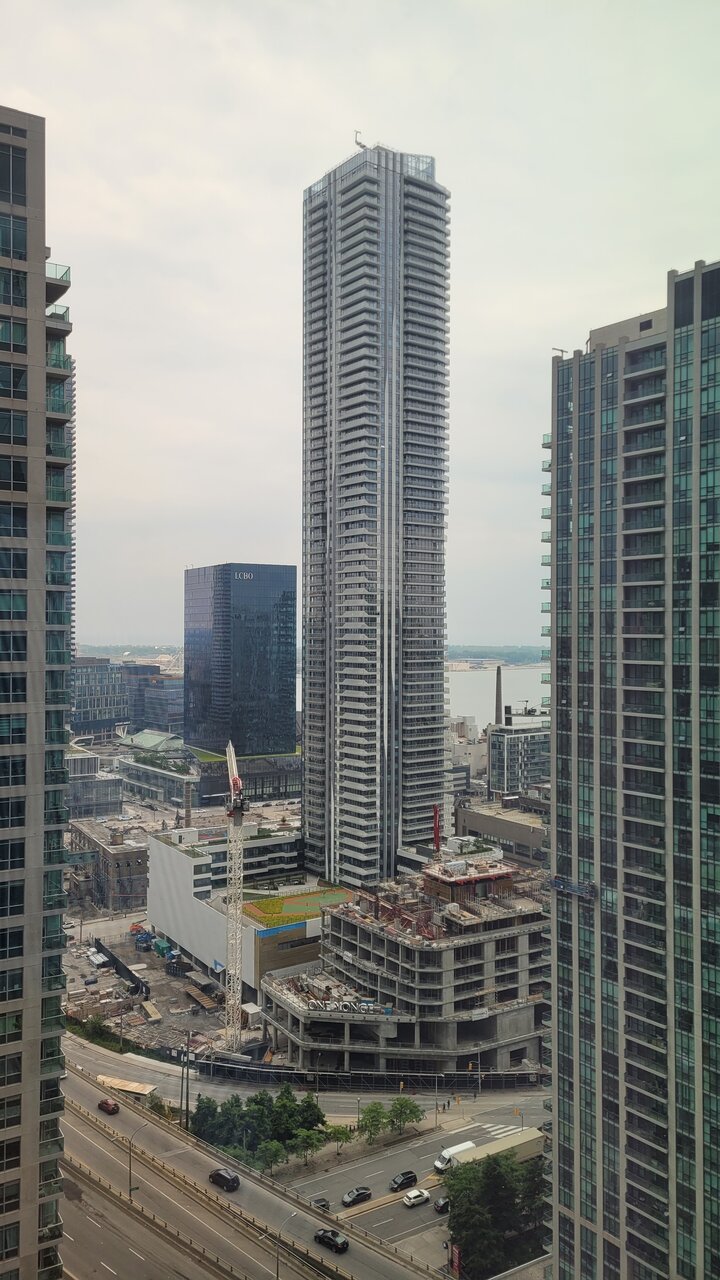

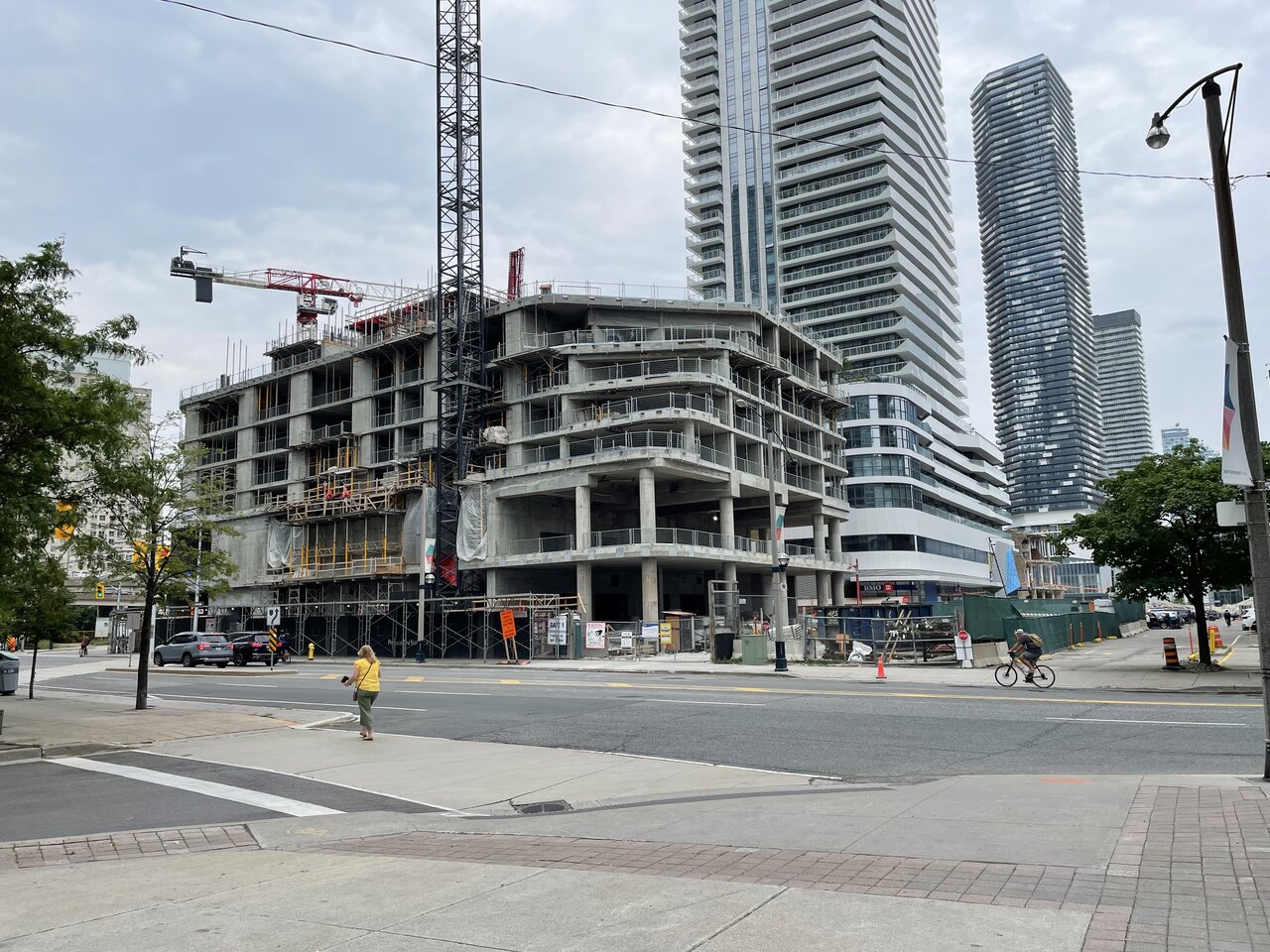

Just 2 pics of this site, taken June 16, 2023, the first of the completed phase 1, the other of the current construction. I had hoped to capture more, but the skies were foreboding and I had other places to be!
