[Monarch Butterfly]

I'd argue there's nothing wrong with a structure looking like it's from the era when it was built. Especially in this instance: Eglinton West station is a Modernist classic. Just like the other 1970s Spadina Line stations, the architecture is as striking as it was the year it was built, and unlike some of the others which are due for restoration, the finishes here are in quite good shape.

The Line 1's Eglinton Station's station box is supposed to be shifted north.

From link. Dated November 17, 2013.



[Shining Tree]

The costs for both underground and above ground go up every year. The cost ratio of underground vs above ground is in the range of 3:1 to 5:1.

"above ground" is a confusing term. I think the intent from @mjl08 was "on-ground" and not above it.
There are a few factors such as station length and station spacing. Assuming 1km spacing, in today's dollars, I'd guess.
Tunneled using TBM (20m deep stations with 100-150m long platforms) = $400 to $600M/km.
Cut-and-cover (10m deep stations with 100-150m long platforms) = $250 to $400M/km
Elevated (80 to 120m long platforms) = $150-250M/km
On street (50 to 80m long platforms) = $100 to $125/km

Summary,



[Ozman]

Great question.

If you look at Page 11-16 (page 16 is extremely clear) you can see the changes proposed:
http://www.ttc.ca/About_the_TTC/Com.../November_18/Reports/Yonge-Eglinton_and_E.pdf

Basically, they're shifting the Yonge platform about 70m north of the current location. I believe 2 sets of the current stairs/escalators will be retained without structural modifications. I expect they'll retile the entire platform area for consistency but I don't know the actual decorating plan.

The existing upper concourse won't change much; but it will be significantly expanded.

The design was updated and the final design was approved in March 2018. The Yonge (Line 1) platform is still being extended, but instead of by 70m, now it will only be extended about 24m to the north. Among other things I believe this allows them to keep the pocket track north of Eglinton Station which would have been removed had the platform been extended 70m as originally proposed.

http://ttc.ca/About_the_TTC/Commission_reports_and_information/Commission_meetings/2018/March_20/Reports/11_Eglinton_Crosstown_LRT_Interchange_Stations_Final_Designs.pdf



[Monarch Butterfly]

The design was updated and the final design was approved in March 2018. The Yonge (Line 1) platform is still being extended, but instead of by 70m, now it will only be extended about 24m to the north. Among other things I believe this allows them to keep the pocket track north of Eglinton Station which would have been removed had the platform been extended 70m as originally proposed.

http://ttc.ca/About_the_TTC/Commission_reports_and_information/Commission_meetings/2018/March_20/Reports/11_Eglinton_Crosstown_LRT_Interchange_Stations_Final_Designs.pdf



[drum118]

July 1
All the photos from Don Mills to Kennedy Station are now on line in various setup as I shot the line and other things, About 150 shot were taken. Shots for Kennedy Station and Science Centre already posted in those threads

Victoria to Kennedy Rd,

Don Mills to Victoria Park



[Shining Tree]

"above ground" is a confusing term. I think the intent from @mjl08 was "on-ground" and not above it.
There are a few factors such as station length and station spacing. Assuming 1km spacing, in today's dollars, I'd guess.
Tunneled using TBM (20m deep stations with 100-150m long platforms) = $400 to $600M/km.
Cut-and-cover (10m deep stations with 100-150m long platforms) = $250 to $400M/km
Elevated (80 to 120m long platforms) = $150-250M/km
On street (50 to 80m long platforms) = $100 to $125/km

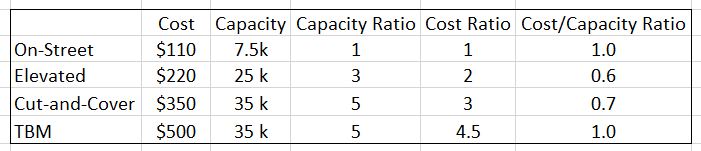

Summary,
View attachment 255501

Hey, I just noticed that the 2 most ineffective uses of tax dollars to build infrastructure are the two that Toronto has focused on for most of the past 15 years



[anb]

Will go buses be able to serve Mount Dennis? i can see them using 400/black creek to get to/from the station and they obviously have connections to the 401/407 (and if I’m being honest even Eglinton itself between the 427/401-Mt Dennis isn bad either



[ahmedyusali]

how many subway cars will have crosstown line.. 2 cars or 3 cars ?



[drum118]

how many subway cars will have crosstown line.. 2 cars or 3 cars ?

What subway cars???...........2/3 Freedom LRV cars by BBD or 2 Alstom Citadis Spirit LRV cars depending on BBD delivery. Freedom cars are like TTC/KW cars while Alston are Ottawa cars............29m vs 48.5m/car



[NoahB]

how many subway cars will have crosstown line.. 2 cars or 3 cars ?

They are starting with two Flexity Freedom cars/vehicles and will expand it to 3 when demand warrants it.
Platforms will start at 60 meters. Knockout panels will hide the extra 30m until the time comes.



[Rainforest]

Will go buses be able to serve Mount Dennis? i can see them using 400/black creek to get to/from the station and they obviously have connections to the 401/407 (and if I’m being honest even Eglinton itself between the 427/401-Mt Dennis isn bad either

Though, Mt Dennis will "compete" with Yorkdale for the 401 GO buses. While buses from the 400 north will arrive to the 407 Transitway station.



[NodeGreen11]

They are starting with two Flexity Freedom cars/vehicles and will expand it to 3 when demand warrants it.
Platforms will start at 60 meters. Knockout panels will hide the extra 30m until the time comes.

Why do they need to hide the extra 30 m with knockout panels? It's not like they haven't finished building those parts, or have they?



[kamira51]

Amazing pictures drum118, much appreciated.



[rbt]

Why do they need to hide the extra 30 m with knockout panels? It's not like they haven't finished building those parts, or have they?

If it's open then it needs to be cleaned, painted, lit, maintained, and trains wait for the people who stand in the wrong place to board. Nobody has missed the covered 1/3rd of the Sheppard platforms and it's been nearly 20 years.



[drum118]

Why do they need to hide the extra 30 m with knockout panels? It's not like they haven't finished building those parts, or have they?

Just encase "cough, Cough" not needed....lol, more like how do we expand the box??. They did the same same for Sheppard and they are finish, other than the centre platform at Yonge..
