[someMidTowner]

As a size reference, I believe the white item just above the bottom right (uncapped) super-column is a port-a-potty. So it's about 9 poop shacks in total area.

I'd like to think this unit of measurement is called a "pubit"



[ChesterCopperpot]

How tall is each mega column? I imagine at least 3 storeys high?

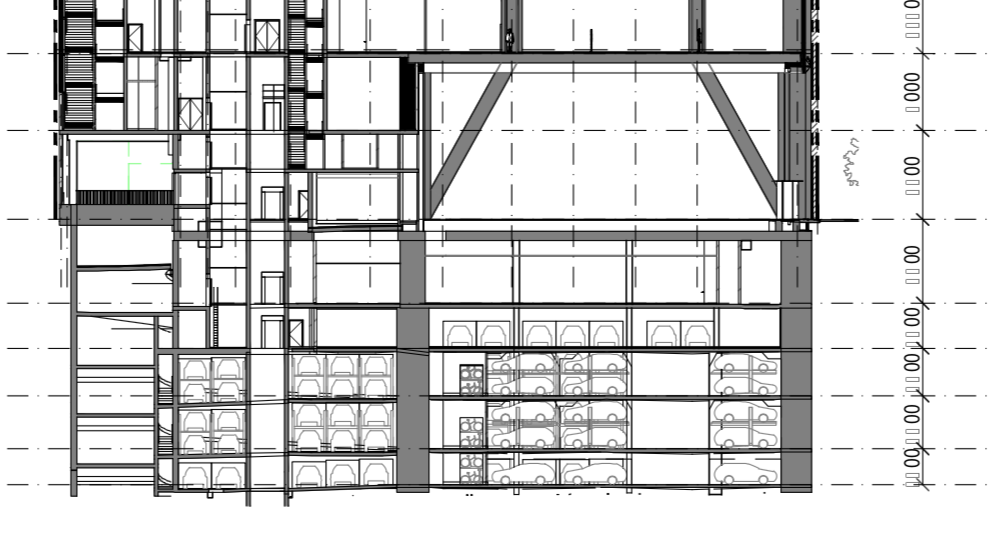

The architectural plans show these steel columns encased in concrete all the way up to the 58th floor.



[raptor]

The architectural plans show these steel columns encased in concrete all the way up to the 58th floor.

I meant, how tall is each "section" of a mega column? CIBC Square has them in the height of 3 storeys for example.



[ChesterCopperpot]

I'd imagine they are just regular floor to floor heights.
CIBC Square is a steel structure - this is concrete - they will still have to be tied into the poured concrete floor structure.

edit: we'll see soon enough



[Contra]

I'd like to think this unit of measurement is called a "pubit"

*poobit

Also from the planning docs...these are concrete encased so kinda hard to tell but looks like the steel could reach grade. (Does that count as "at grade"? ? )



[AlvinofDiaspar]

And that confirms that bunk parking as well.

AoD



[Benito]

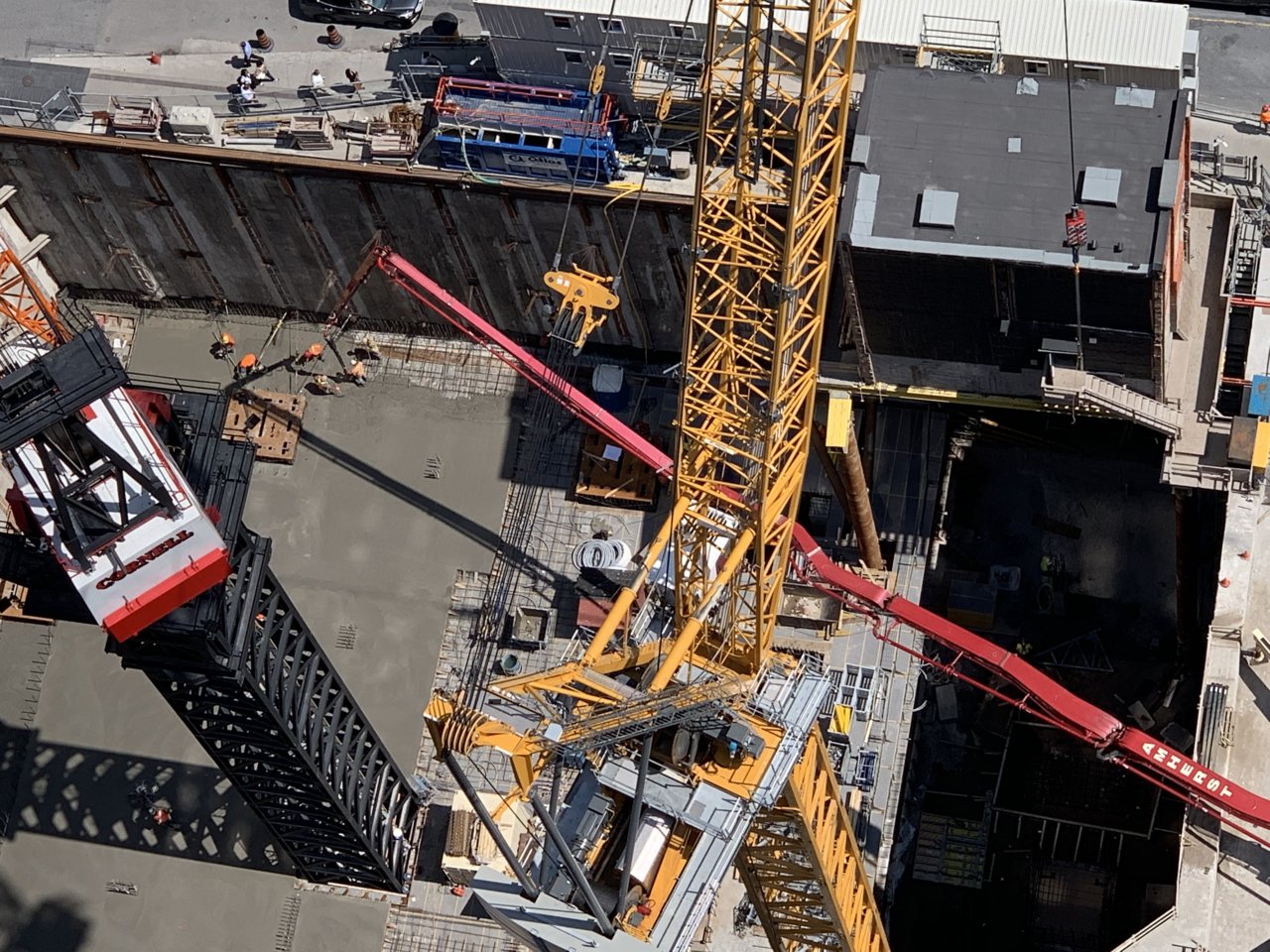

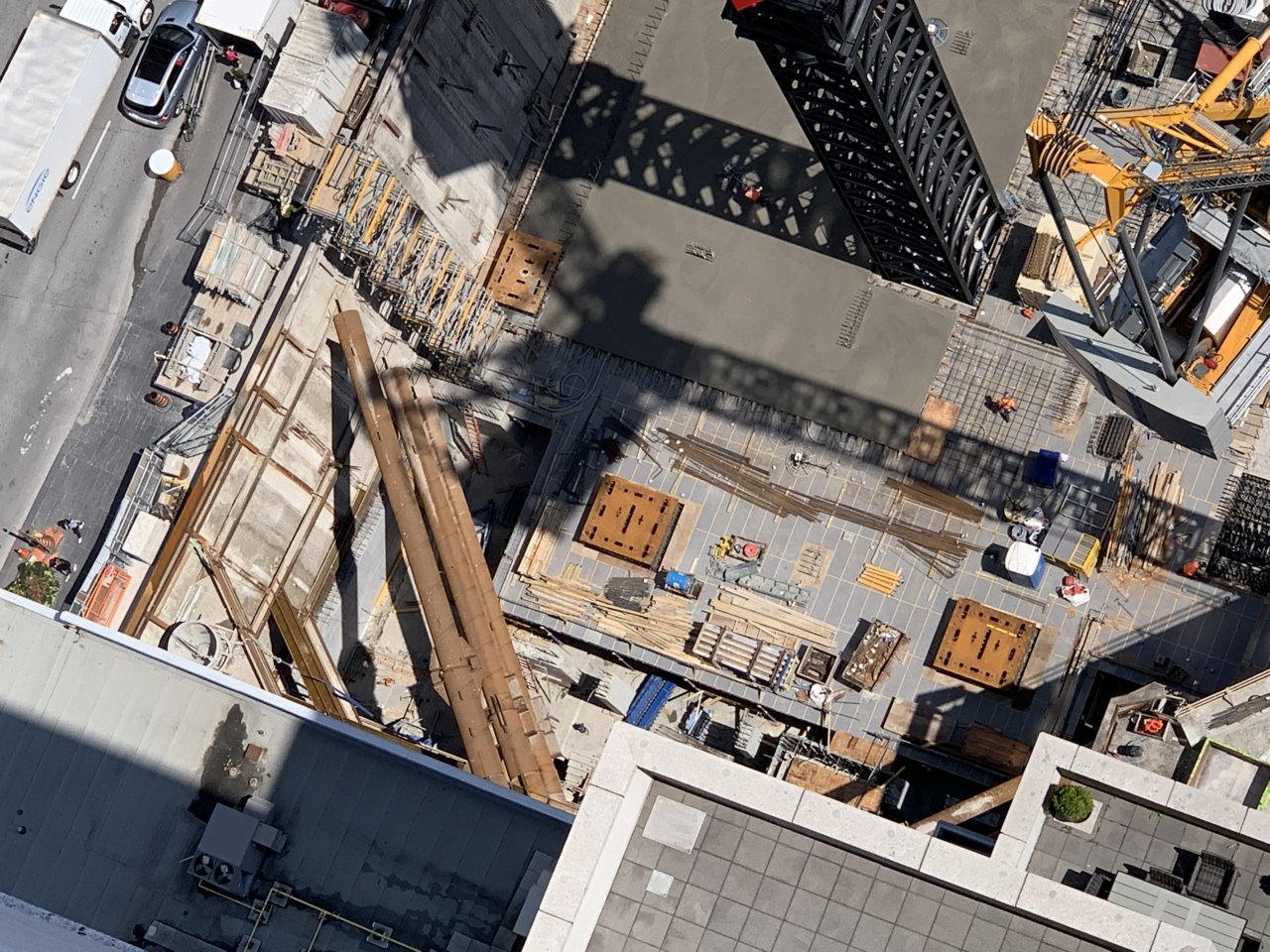

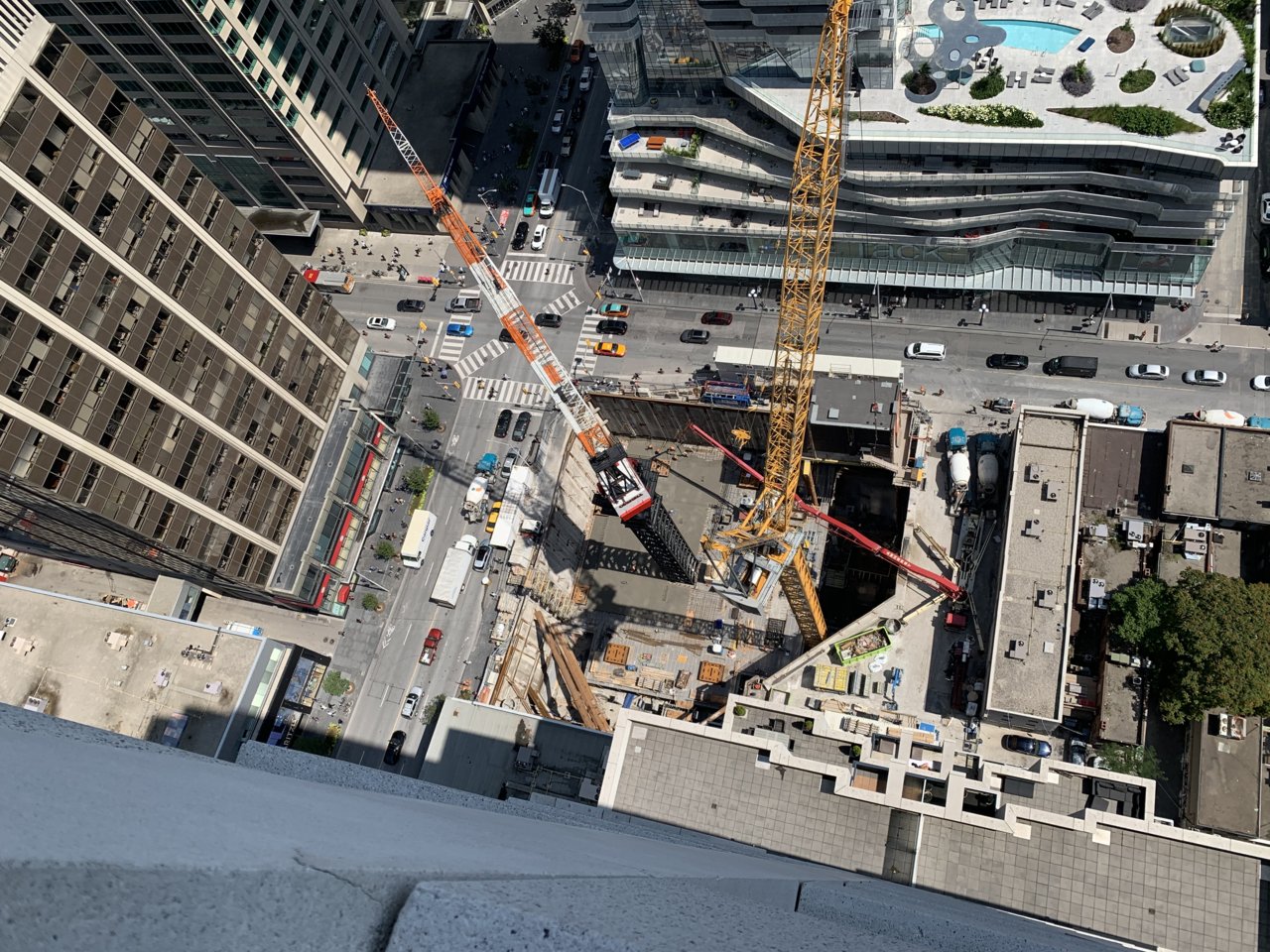

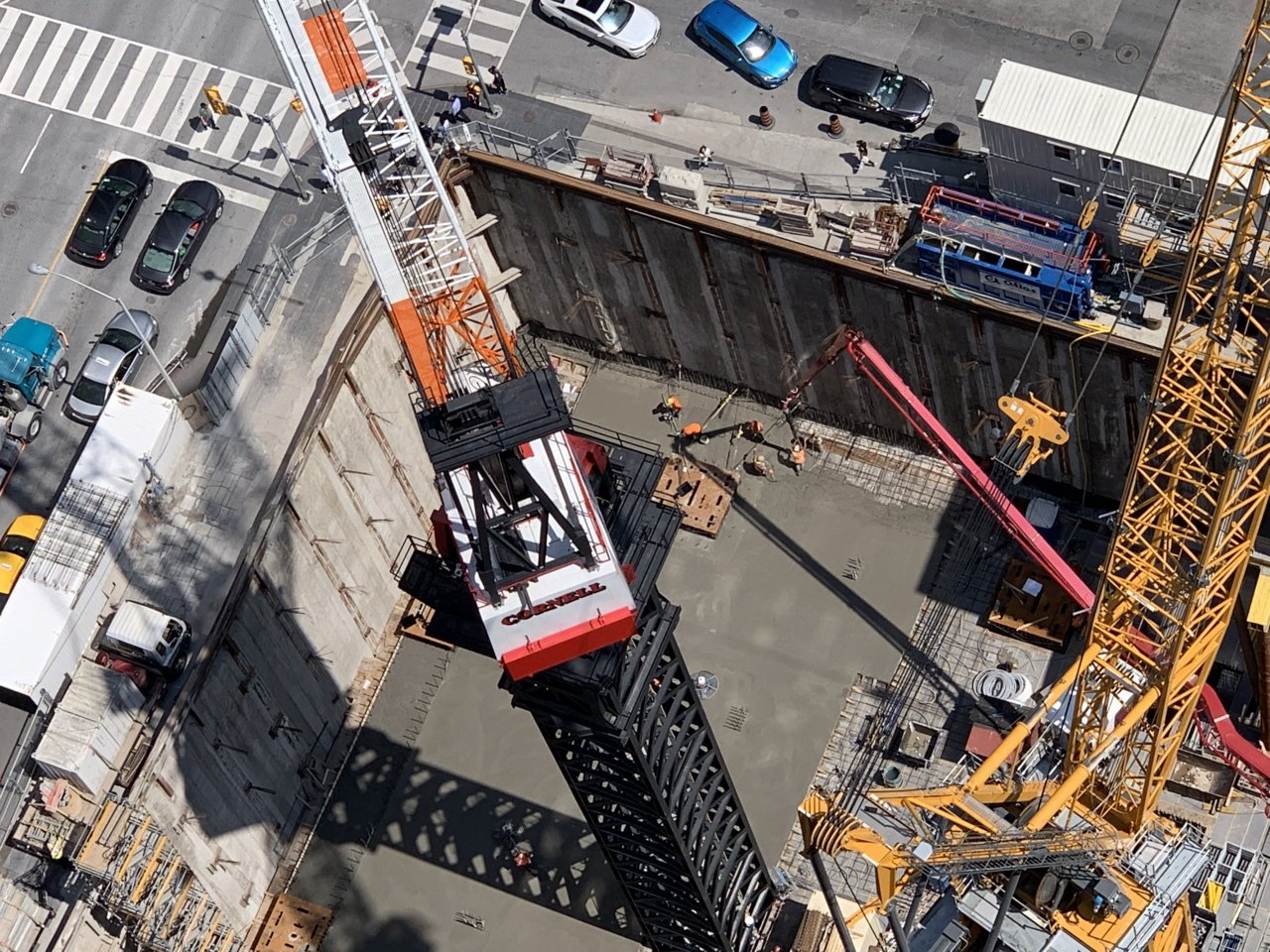

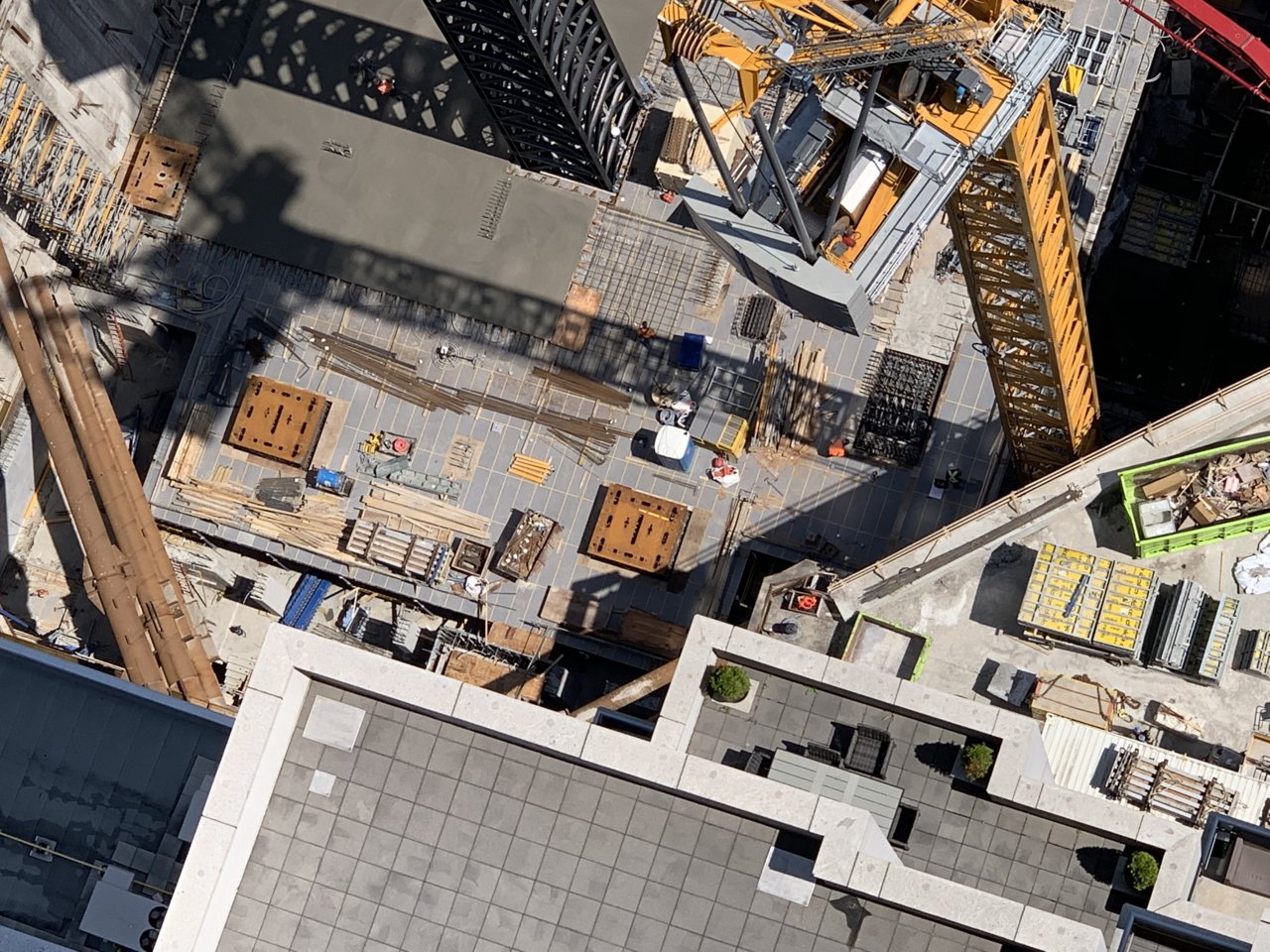

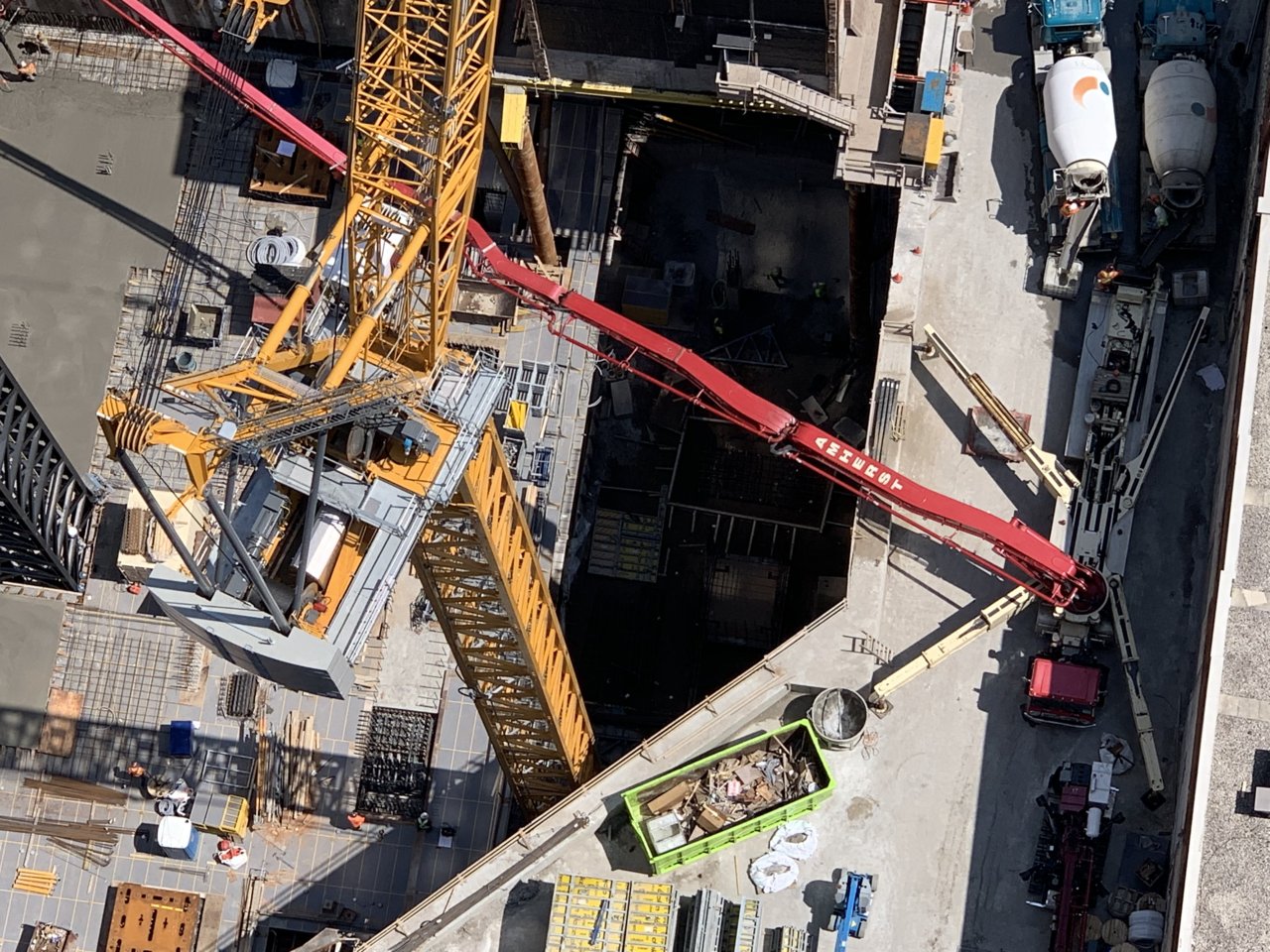

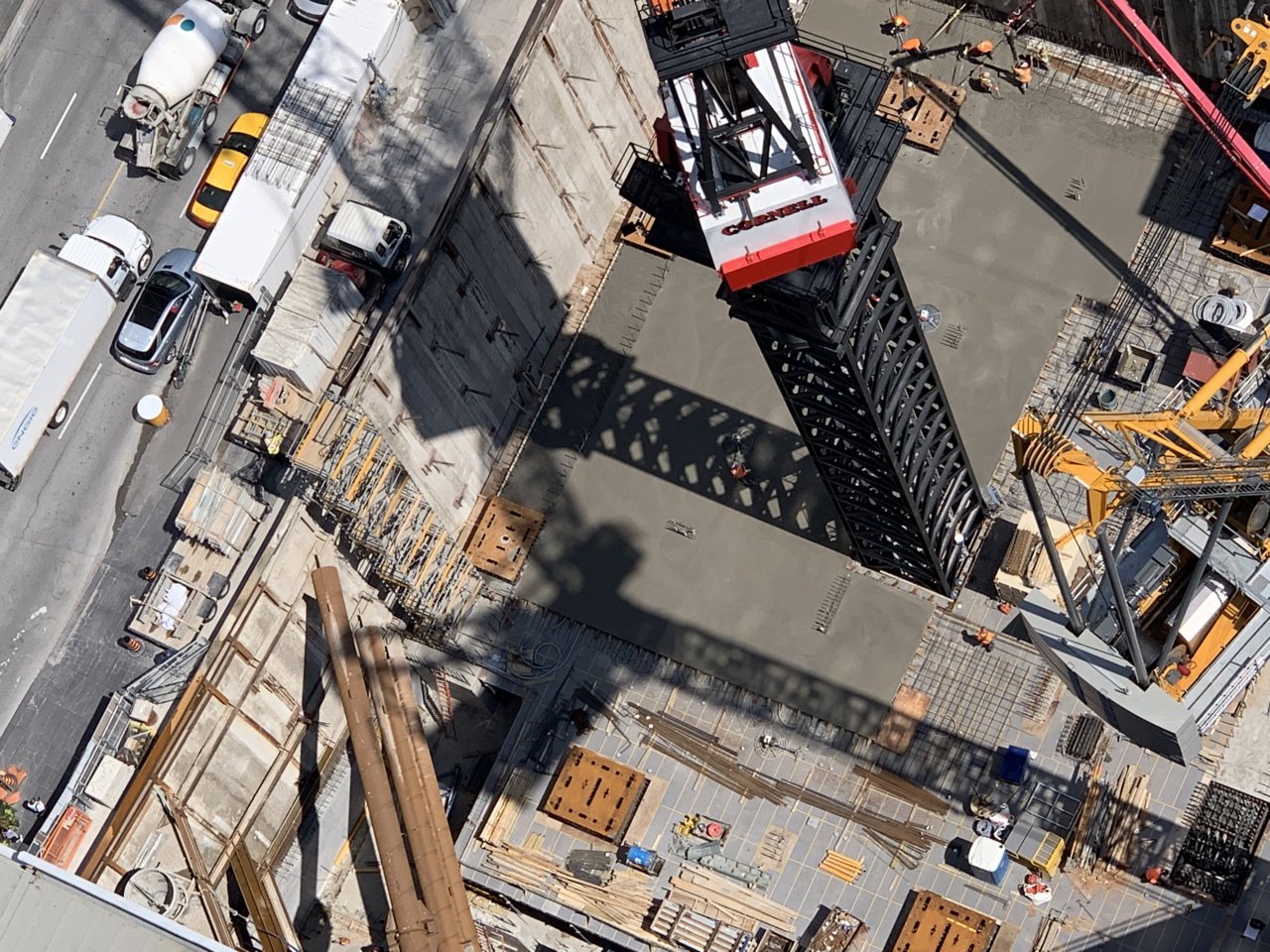

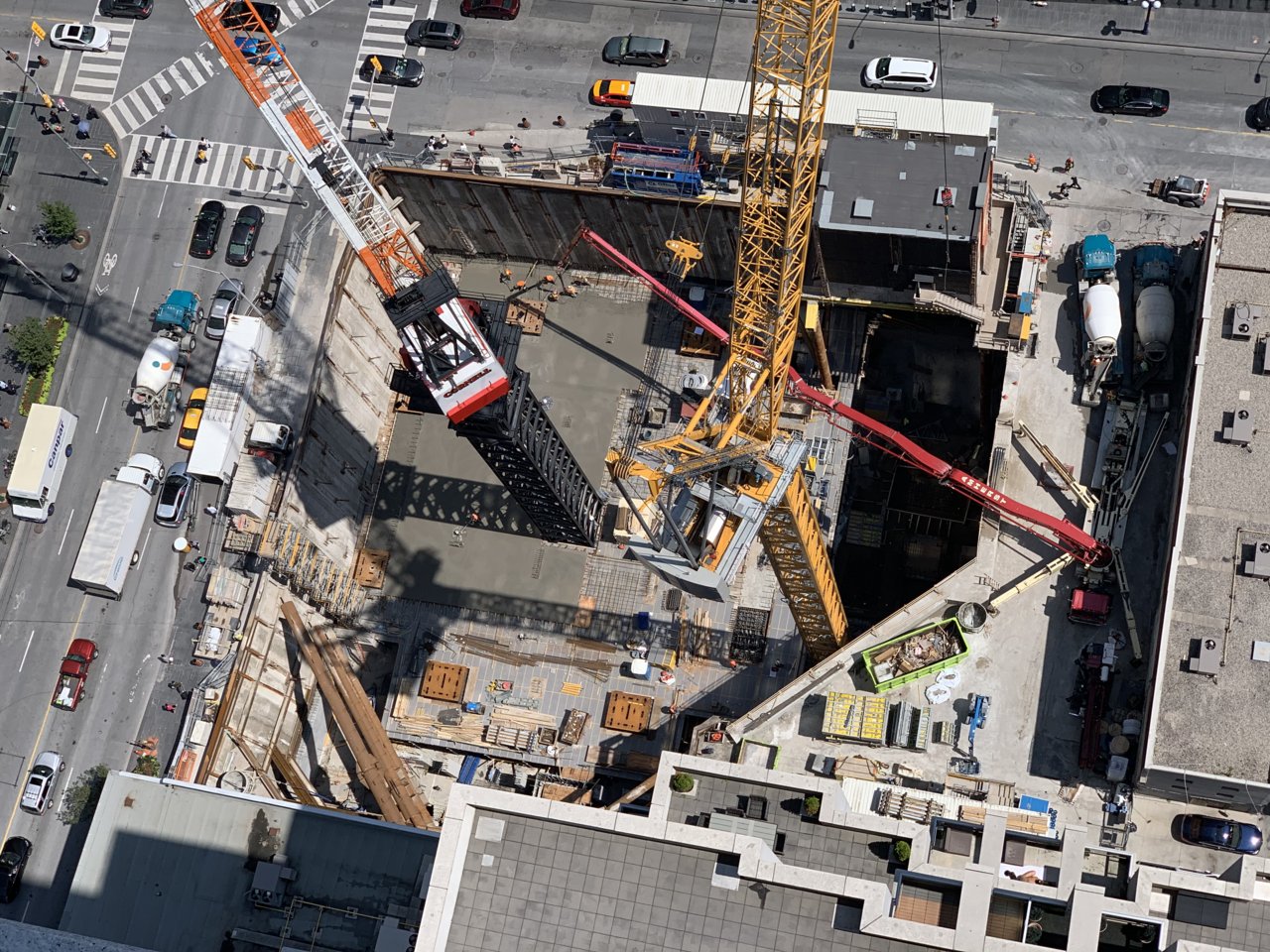

Today.



[AlvinofDiaspar]

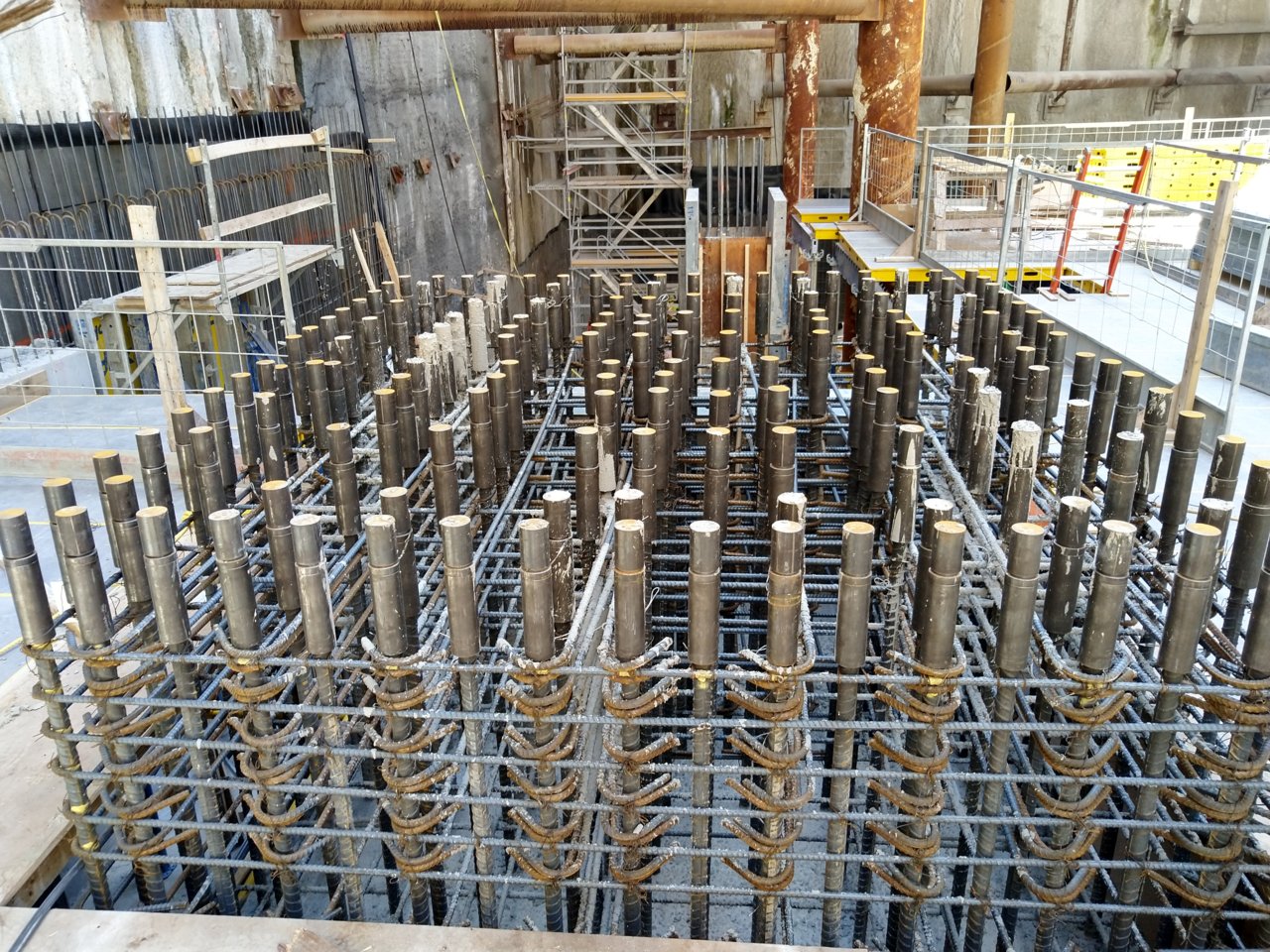

Is it just me, or is the rebar density of the floor really low?

AoD



[raptor]

Is it just me, or is the rebar density of the floor really low?

AoD

Plus, I can't spot any conduits or post-tensioning cables, or anything else other than rebar!



[Contra]

Plus, I can't spot any conduits or post-tensioning cables, or anything else other than rebar!

You can see a few conduits on Benito's third last photo, still a really small amount though.



[Marq Up]

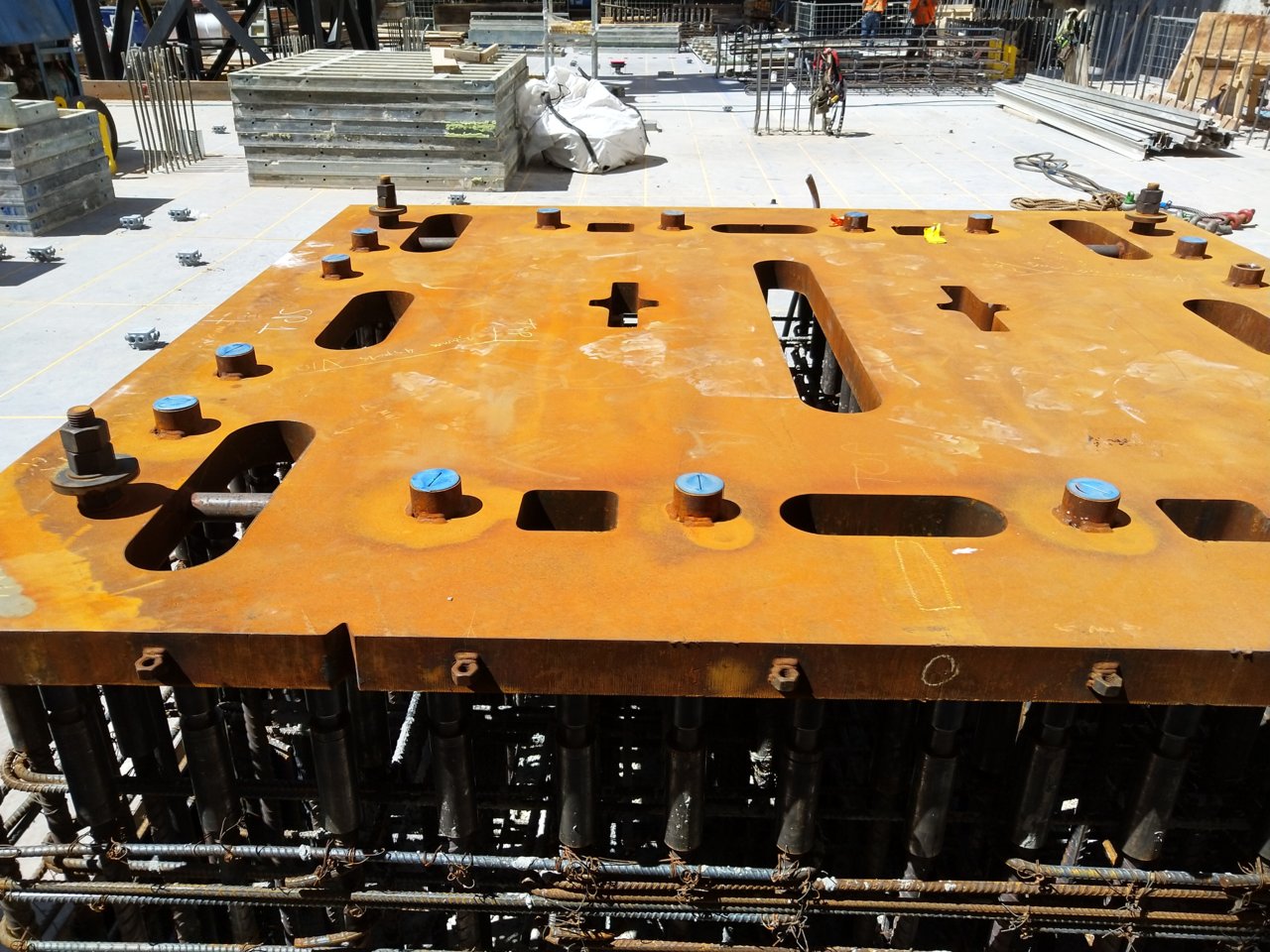

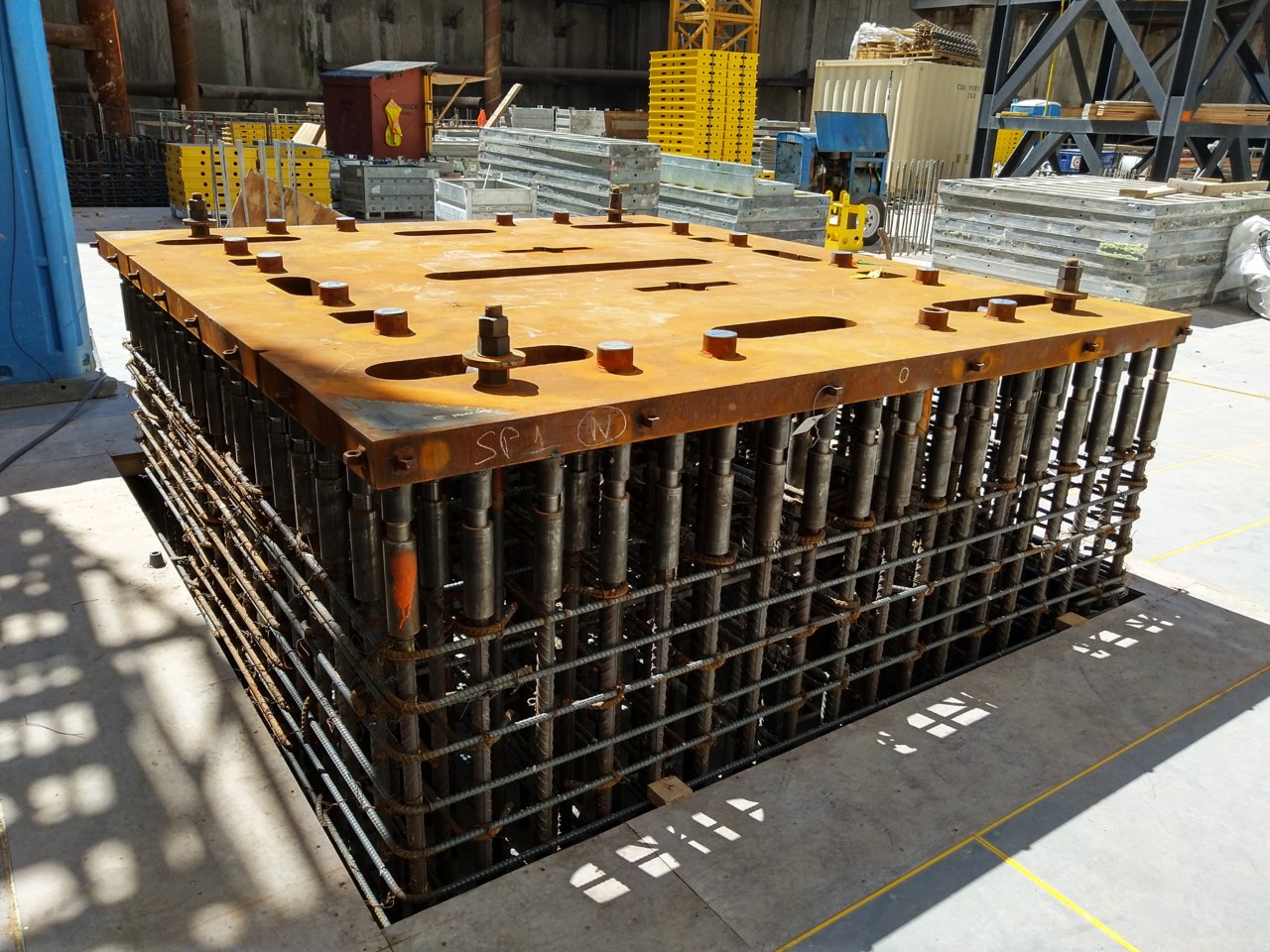

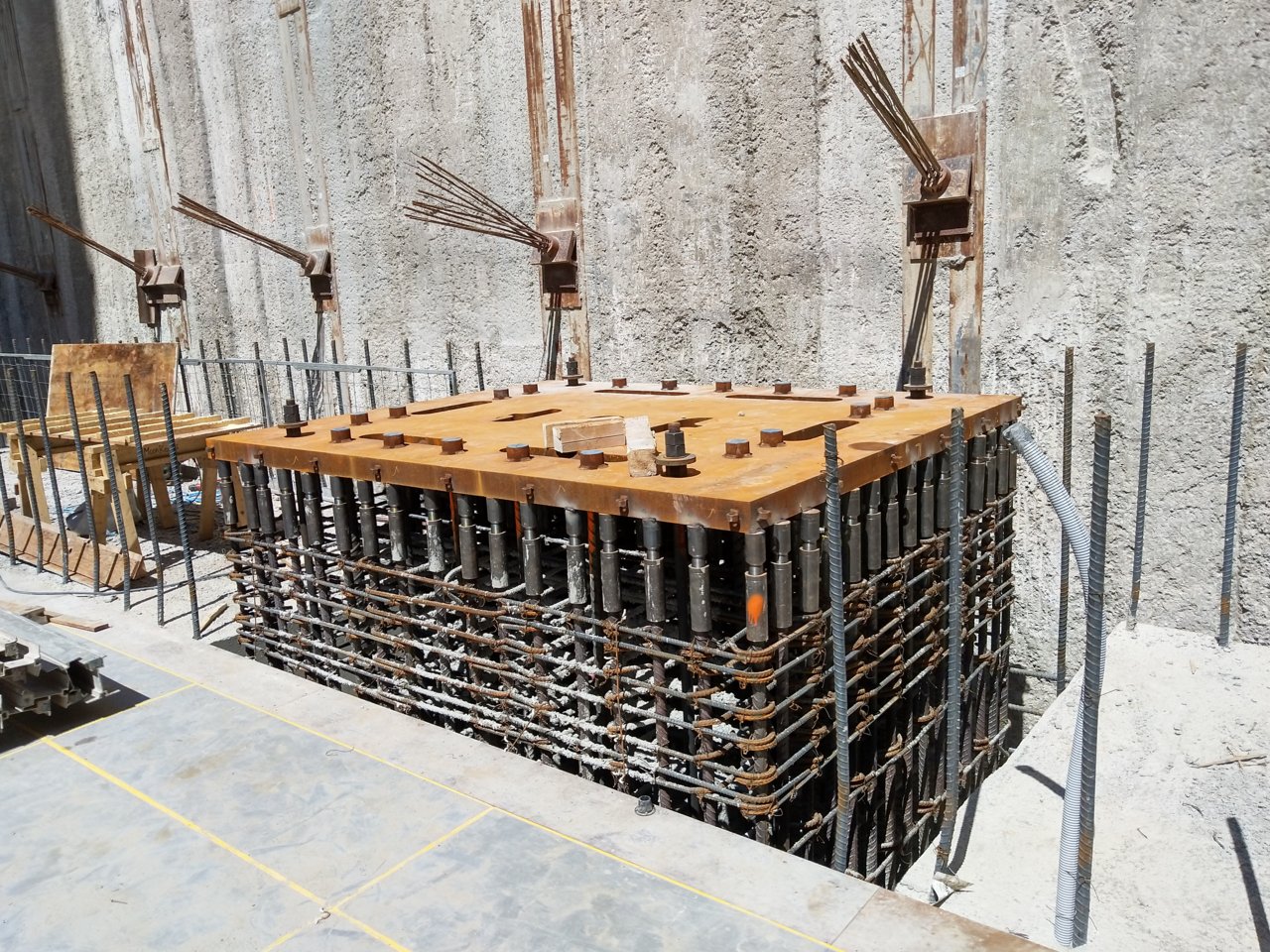

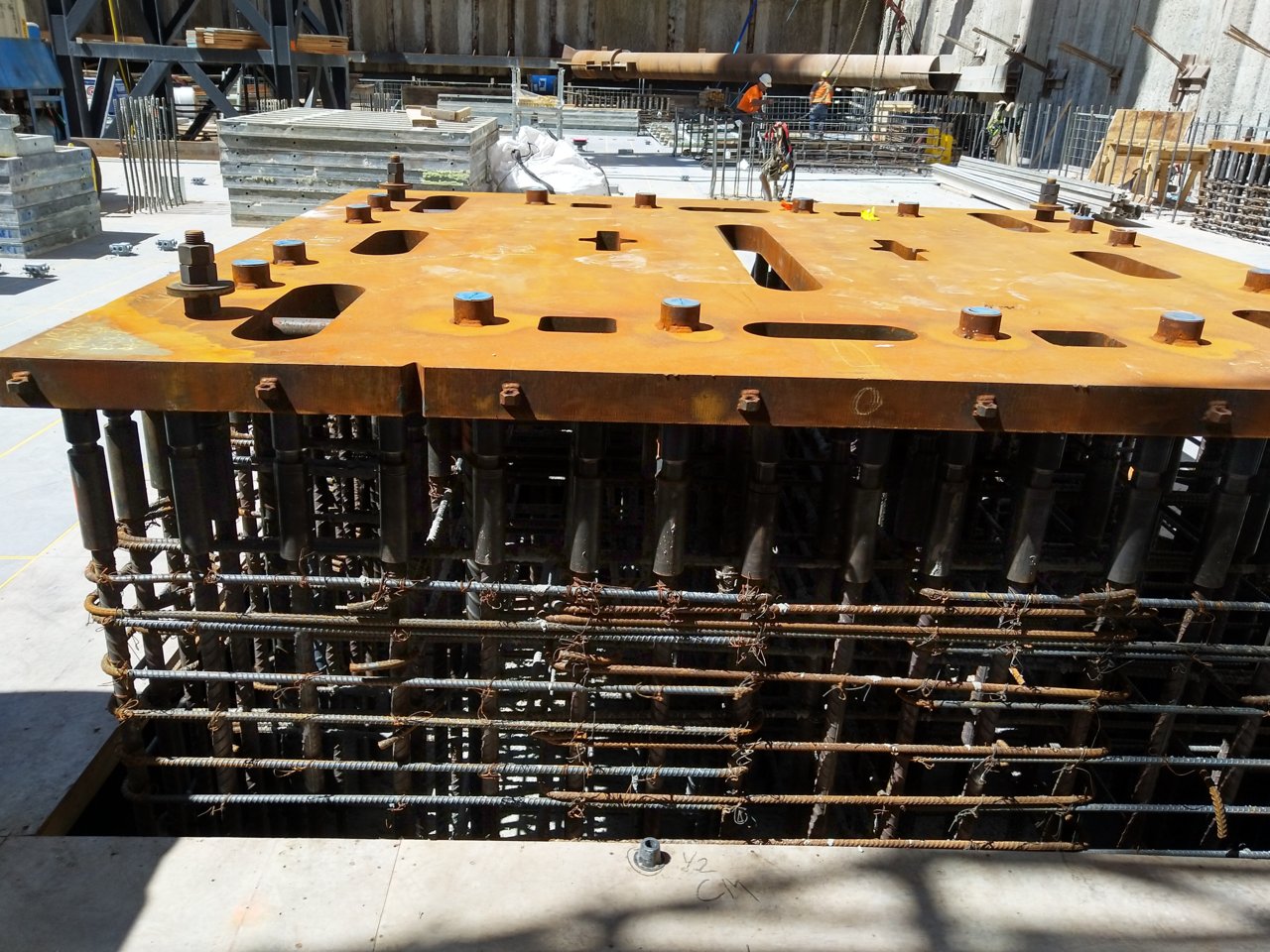

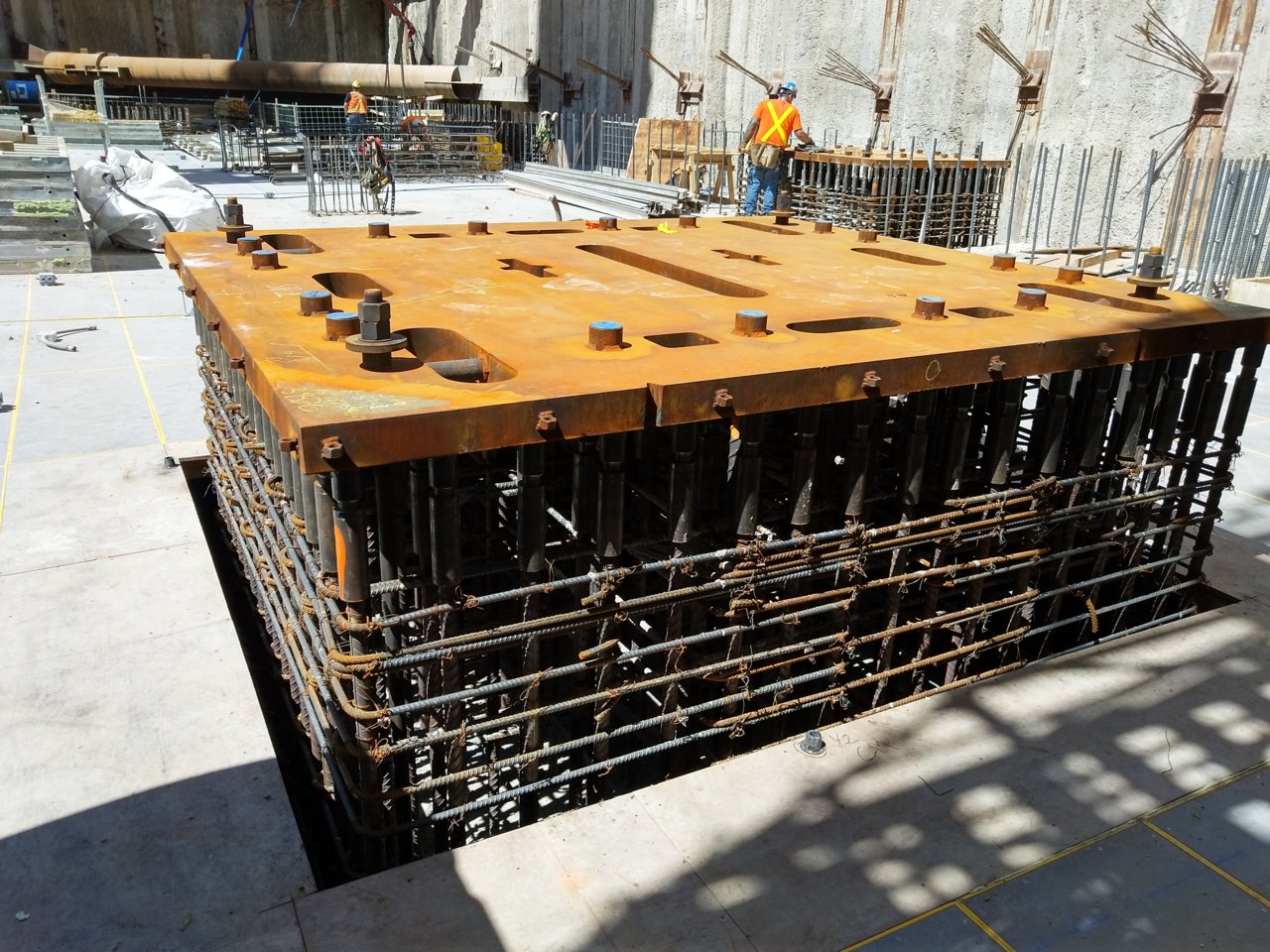

Here is a close up view of the base plates. The floor has double row of rebar and is almost 9" thick.



[androiduk]

Rebar porn?



[packers67]

I thought I'd take this rainy Saturday morning to provide a summary of the guesses received to date in our little "Meeting The Grade" contest for those following this thread.

The list is in chronological order of estimated date:
Chestercopperpot - Oct 11
Deaf_Torontian - Oct 18
AdamS - Oct 29
Contra - Oct 31
Lyphe - Oct 32 (lol)
Koops65 - Nov 6
Travis3000 - Nov 15
TSTORMERS - Nov 16
Packers67 - Nov 22
Heatscore - Nov 25
Ottawan - Dec 9

Thanks to everyone who has weighed in to date!



[eltodesukane]

Here is a close up view of the base plates. The floor has double row of rebar and is almost 9" thick.


View attachment 199321

So many rebars... Why not make this column full metal instead of concrete? Is it cheaper that way?



[Christopher Brown]

The architectural plans show these steel columns encased in concrete all the way up to the 58th floor.

Now I finally have some idea what everyone's been talking about when super columns have been mentioned
